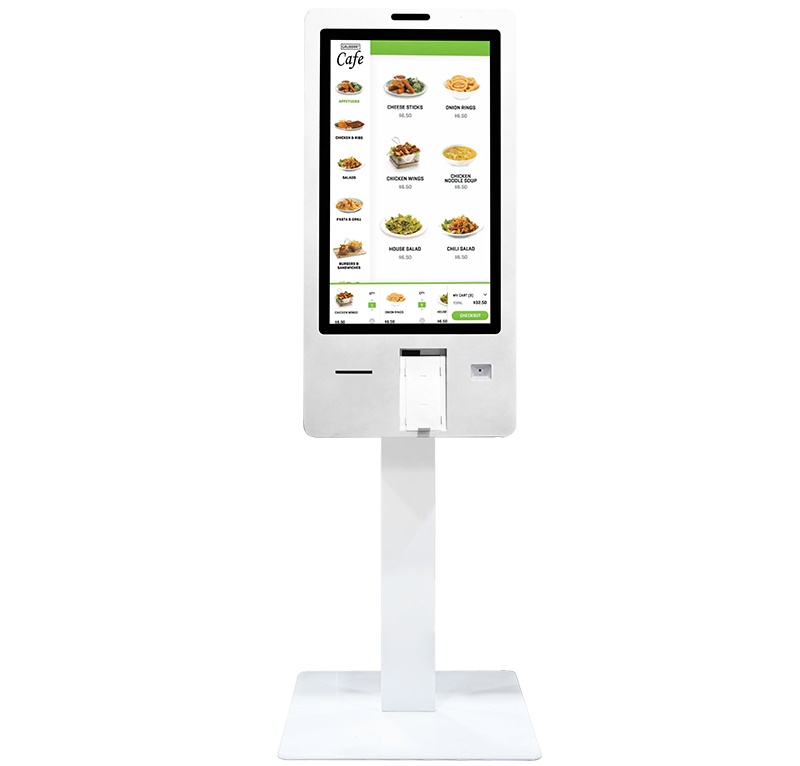

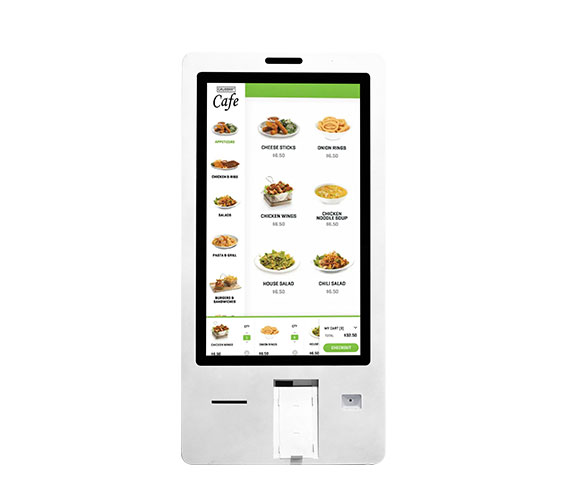

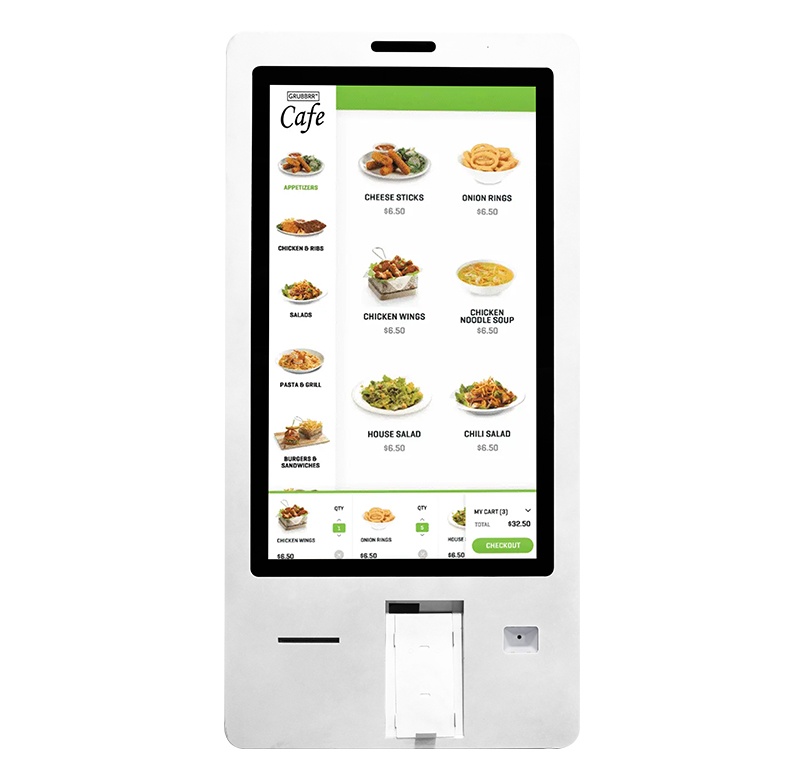

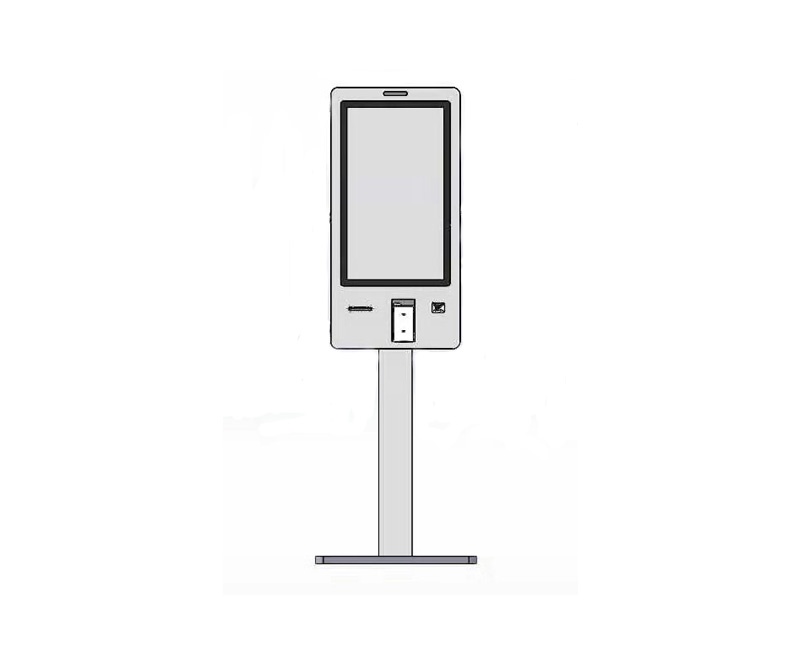

JAW-K320
32inch self-service Kiosk with wall-mount or floor stand optional, ODM supported
Function introduction
- Touch screen self service payment Kiosk
- Highly performing tool, with a simple but elegant design, suitable for any kind of location.
- Screen with Capacitive touch
- 58/80mm receipt printer is optional
- With QR code scanner
- Floor standing or wall mount installation
- The body of Kiosk using mild steel and baking process
Features
JAW-K320
Touch screen self service payment Kiosk
Highly performing tool, with a simple but elegant design, suitable for any kind of location
Technical Specifications
| Features | Details |
|---|---|
| SYSTEM | |
| Model | JAW-K320 |
| CPU | Celeron J1900 quad core processor, 2.0Ghz Intel® Core® i3-3217U Intel® Core® i5-4210U Android RK3288 |
| RAM | DDR3 2GB/4GB/8GB |
| Hard disk (HD) | 32GB/64GB/128GB/256GB SSD |
| Operating System | Windows 7, 10 Android 6.0, 7.0 |
| DISPLAY | |
| Panel size | 32.0 inches |
| Resolution | 1920 * 1080 Pixel |
| Touch screen | Projective capacitive touch panel |
| INTERFACE | |
| USB | 2*USB |
| LAN | 1*RJ45 |
| Power | 12V DC input |
| OPTIONS & PERIPHERALS | |
| Included features | 58/80mm thermal printer 2D scanner Built in dual amplified speakers |
| Optional function | Wifi, support 802.11 a/b/g/n wireless protocol Camera, 2.0MP user identity camera |
| PHYSICAL & ENVIRONMENTAL | |
| Operating Temperature | 0°C~40°C at 20%~80% humidity |
| Storage Temperature | -20°C~60°C at 20%~85% humidity |
| Product Reliability | CE, FCC, RoHS |
