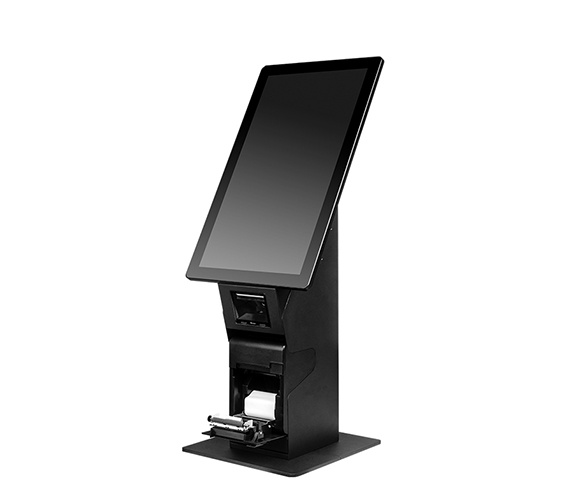

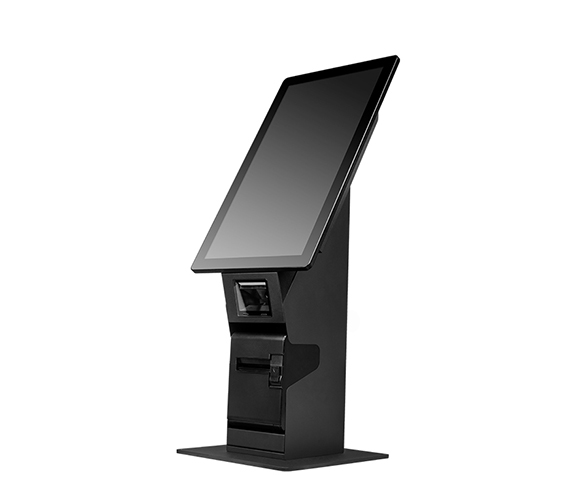

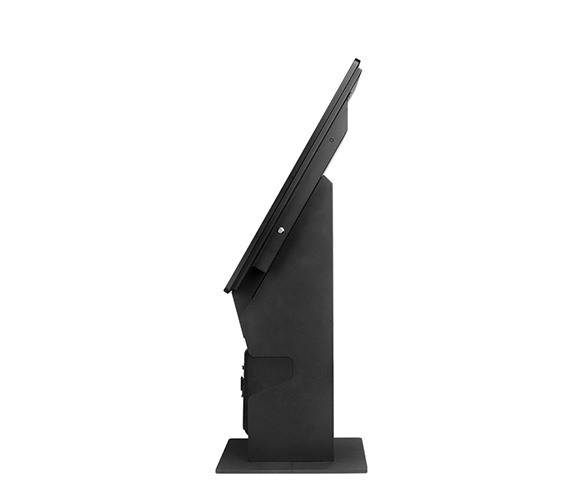

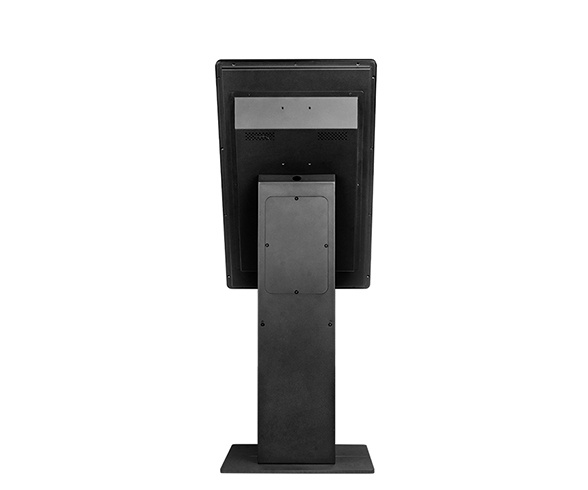

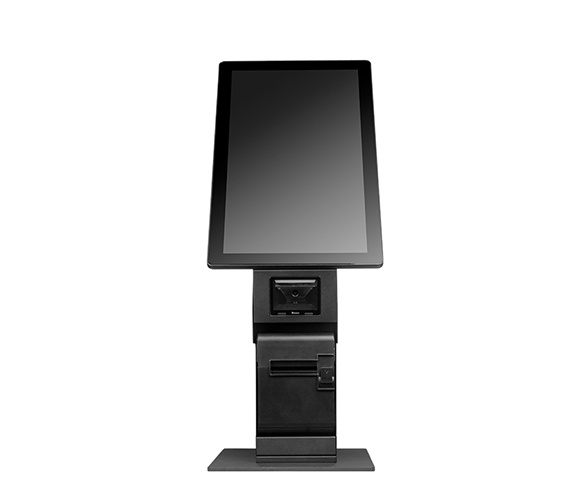

Manto Kiosk
21.5inch Kiosk with space for printer, 2D Scanner, desktop or floor stand optional
Function introduction
- The MANTO is the new all-in-one POS terminal that packs innovativeness and functionality in compact design with stylish look.
- Ideal for retail businesses where space is at premium.

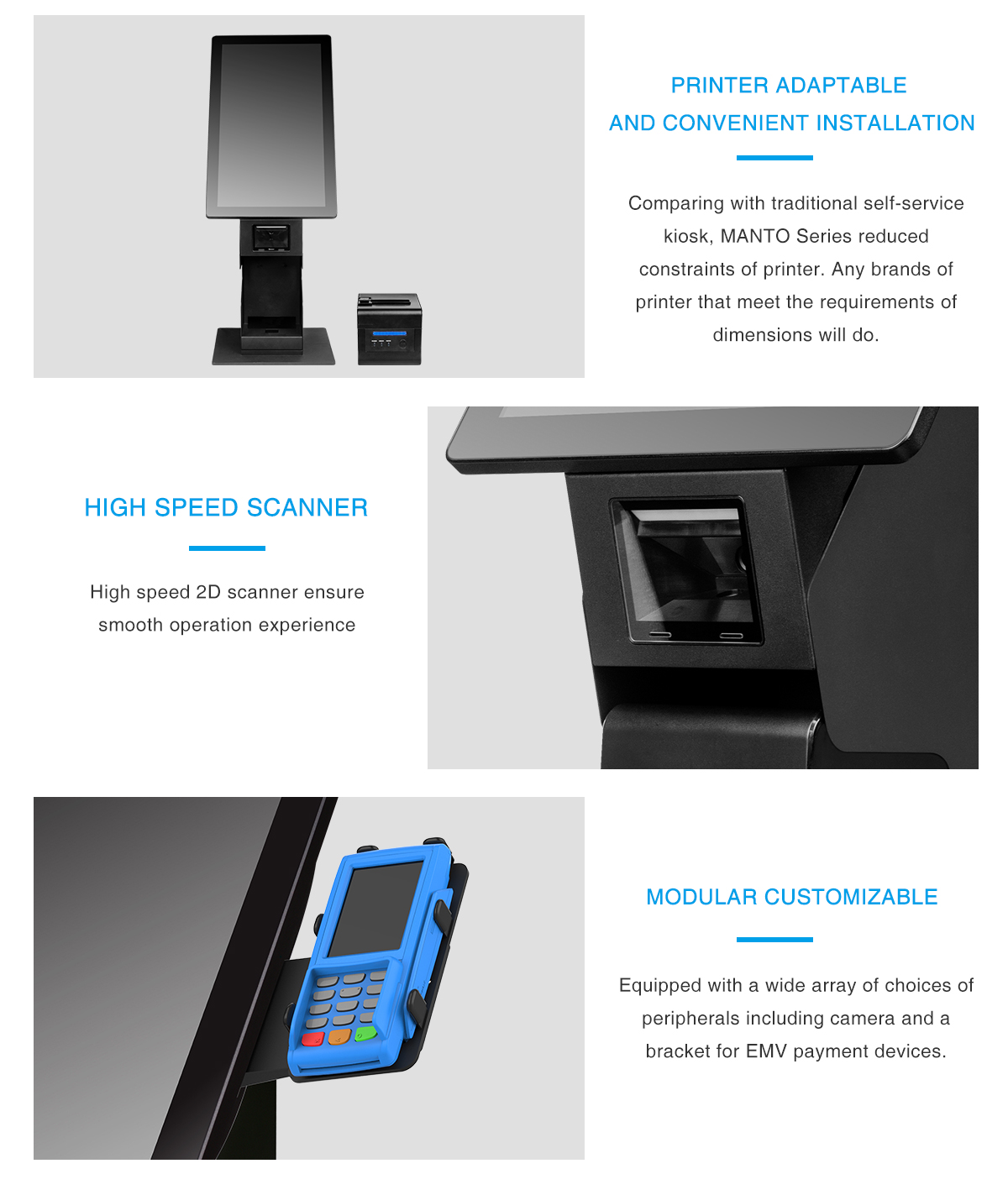

- Space for printer with 2D scanner, desktop or floor stand optional.
Features
Manto Kiosk
The MANTO is the new all-in-one POS terminal that packs innovativeness and functionality in compact design with stylish look, which is ideal for retail businesses where space is at premium.
OS
Windows 10/11, POSReady
CPU
Celeron J1900/J4125/J6412
Memory
2GB, up to 32GB
Main Display
21.5" TFT LED Backlight
Printer Space
L160 x W130 x H200mm
Scanner
2D Barcode Scanner
Wifi
Mini PCIe (Option)
Speaker
1*3W Speaker
Technical Specifications
| Features | Details |
|---|---|
| SYSTEM | |
| Processor | Intel Celeron J1900 Quad-Core, Up to 2.42Ghz Intel Celeron J4125 Quad-Core, Up to 2.70 GHz Intel Celeron J6412 Quad-Core, Up to 2.6Ghz Intel Core i3/i5 3rd, 4th, 5th, 6th, 7th, 8th High Performance CPU |
| Memory | 2GB Standard, DDR3L or DDR4, up to 8GB/16GB/32GB |
| Storage | mSata or M.2 32GB standard, up to 512GB |
| OS | Windows 7, 10, 11, POSReady7 |
| DISPLAY | |
| Type | 21.5 inch TFT LED backlight LCD |
| Resolution | 1920*1080 |
| Viewing Angle(CR≥10) | 178 Degree(H) ; 178 Degree(V) |
| Brightness | 250 nits |
| Touchscreen | Projective Capacitive Touch Screen |

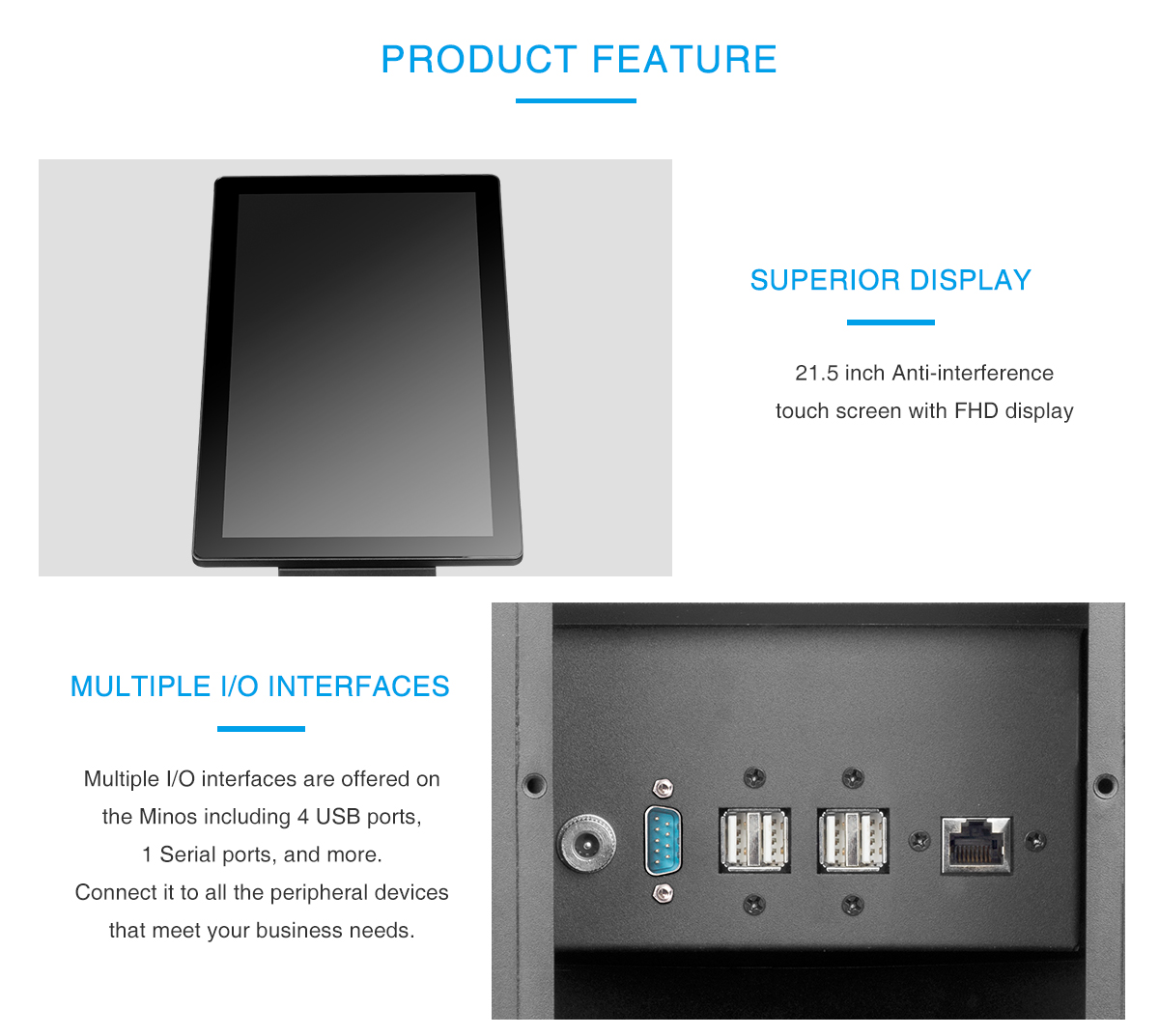

| INTERFACE | |
| USB | 4*USB |
| LAN | 1*Gigabit Ethernet, RJ45 |
| Serial | 1*COM (RS232) |
| Power DC-IN | Input AC 100~240V/50~60hz, Output DC12V/7.5A |
| SCANNER | |
| Interface | USB, RS-232 Option |
| Image Sensor | 1280*800 CMOS |
| Illumination | 3000K White LED |
| Data Capture | 1D: Code 11, Code 128, Code 39, GS1-128, (UCC/EAN-128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A/UPC-E, Coupon, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2/5, Industrial 2/5, ITF-14, ITF-6, Standard 2/5, China Post 25, MSI-Plessey, Plessey, GS1 Databar, GS1 Composite, Databar(RSS) 2D: PDF417, QR Code, Data Matrix, Aztec |
| Resolution | ≥4mil (1D) |
| Typical Depth of Field | EAN-13: 0mm-150mm (13mil) QR Code: 30mm-100mm (15mil) |
| Scan Angle | Roll: 360°, Pitch: ±55°, Skew: ±50° |
| Min. Symbol Contrast | 25% (Code 128 10mil) |
| Field of View | Horizontal 65.6°, Vertical 44.6° |
| PHYSICAL & ENVIRONMENTAL | |
| Printer Space | L160 x W130 x H200mm (Printer is not provided) |
| Operating Temperature | Operating 0~60° |
| Storage Temperature | Storage -35°~75° |
| Cooling | Fanless or with CPU Fan |

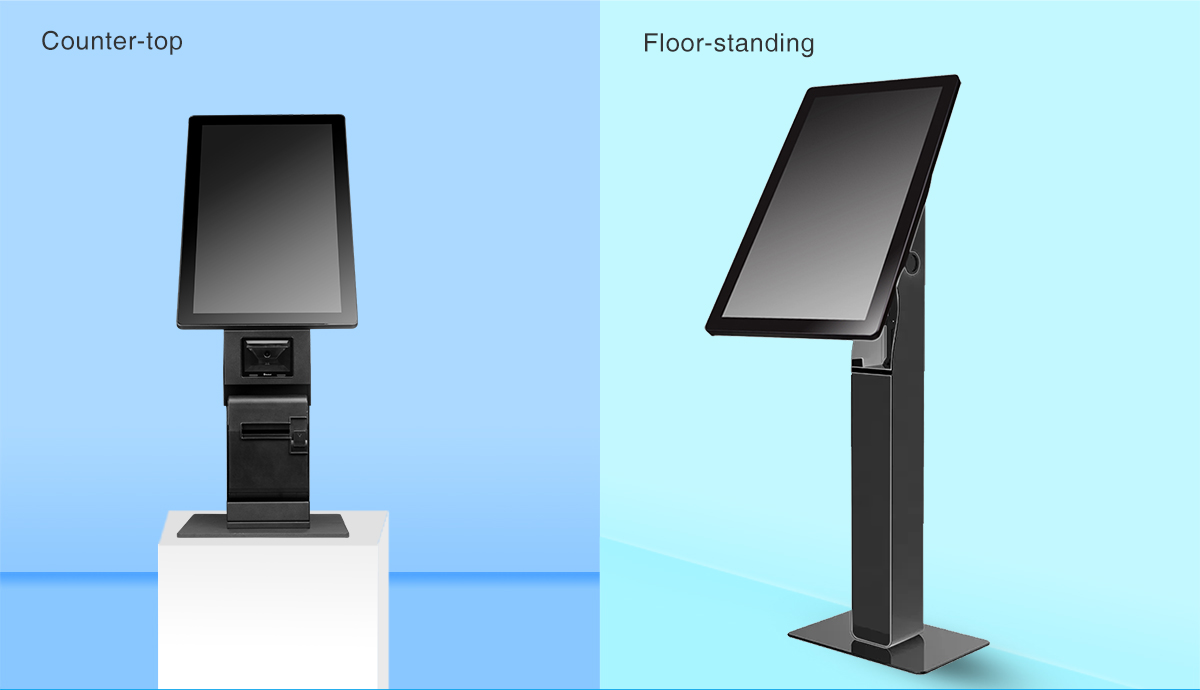

| Dimensions(W×H×D) | Countertop Stand: 310x832x310(mm) Floor-standing: 500x1596x360(mm) |
| Net Weight | Countertop Stand: 21.20KG Floor-standing: 23.00KG |
| Color | Black |
| OPTIONS & PERIPHERALS | |
| Wifi | Mini PCIe for Wireless LAN (Option) |
| Bluetooth | Bluetooth 4.0 (Option) |
| Speaker | 1*3W |
| Payment Terminal Bracket | Adjustable Bracket Optional |
