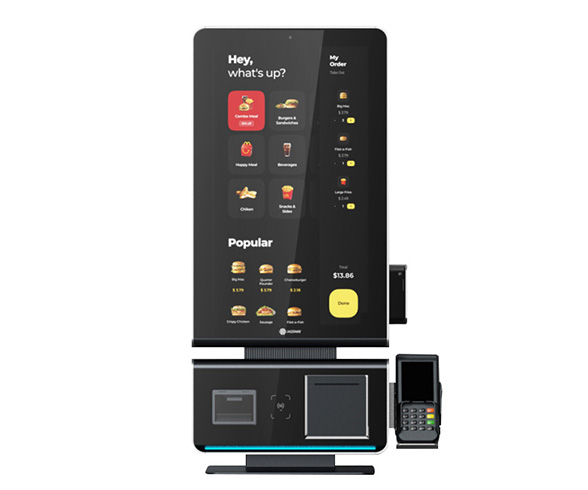

ZAF270K-AD
27inch desktop type Kiosk with printer, Scanner, Camera, NFC optional
Function introduction
- 27-inch FHD bezel-free screen with superior visual experience and smooth user-interaction.
- Windows and Android OS support.
- Flexible installation with floor stand, desktop or wall-mounted style.
- Word-leading scanning technology with user friendly subdued light.
- Quick receipt paper and easy replacement.
- Modular options with payment terminal, MSR, NFC, camera.
- Color customizable LED indicator for status check.
Features
• 27-inch FHD bezel-free screen with superior visual experience and smooth user-interaction.
• Windows and Android OS support.
• Flexible installation with floor stand, desktop or wall-mounted style.
• Word-leading scanning technology with user friendly subdued light.
• Quick receipt paper and easy replacement.
• Modular options with payment terminal, MSR, NFC, camera.
• Color customizable LED indicator for status check.
OS
Android 11
CPU
RK3568 / RK3399
Memory
4GB ROM + 32GB RAM
Main Display
27 Inch TFT LED Backlight LCD
Scanner
2D Barcode Scanner
Printer
3" Printer W/Auto Cutter, 200 mm/sec (Max.)
NFC
NFC Option
Camera
2 MP Wide Angle Camera (Option)
Technical Specifications
| Features | Details |
|---|---|
| MODEL | |
| Model Number | ZAF270K-AD |
| SYSTEM | |
| Processor | RK3568 ARM Cortex-A55 Quad-Core, 2.0GHz RK3399 ARM Cortex-A72 Dual-core+Cortex-A53 Quad-core |
| Memory | 4GB DDR4 |
| Storage | 32GB EMMC |
| OS | Android 11 |
| DISPLAY | |
| Type | 27 Inch TFT LED Backlight LCD |
| Resolution | 1920*1080 |
| Aspect Ratio | 16:9 |
| Brightness | 300cd/m2 |
| Touchscreen | Projective Capacitive Touch Screen |
| INTERFACE | |
| Display | 1*HDMI |
| Standard USB Port | 2*Internal USB, 1*External USB |
| LAN | 1*Gigabit Ethernet, RJ45 |
| Audio | 2*Internal 3W Speaker |
| Power DC-IN | Input AC 100~240V/50~60hz |
| STANDARD COMPONENTS | |
| Scanner | 2D Barcode Scanner |
| Printer | 3" Printer W/Auto Cutter, 200 mm/sec (Max.) |
| Status Indicator | Color LED Indicator |
| PHYSICAL & ENVIRONMENTAL | |
| Operating Temperature | Operating 0~60° |
| Storage Temperature | Storage -35°~75° |
| Cooling | Fanless or with CPU Fan |
| Dimensions(W×H×D) | Wall Mounting: 923.5*422*115(mm) Floor-standing: 1734*550*450(mm) |
| Net Weight | Countertop Stand: 24.84kg Floor-standing: 45.42kg |
| Color | Black/Silver |
| OPTIONS & PERIPHERALS | |
| Wifi | IEEE 802.11 a/b/g/n/ac, 2.4Ghz |
| Bluetooth | Bluetooth 5.0 |
| MSR | Comply with ISO 7811, Support 1&2&3 Track (Option) |
| NFC | MIFARE, FeliCa, IS0/IEC 14443A/B ISO/IEC 18092,ECMA 340 NFCIP-1 Peer-to-Peer (Option) |
| Camera | 2 MP Wide Angle Camera (Option) |
| 4G/LTE Communication | Support Selected Bands & Countries With Full SIM Slot (Mini-pcle Module) By Request |
| Payment Terminal Bracket | Adjustable Bracket (Option) |
