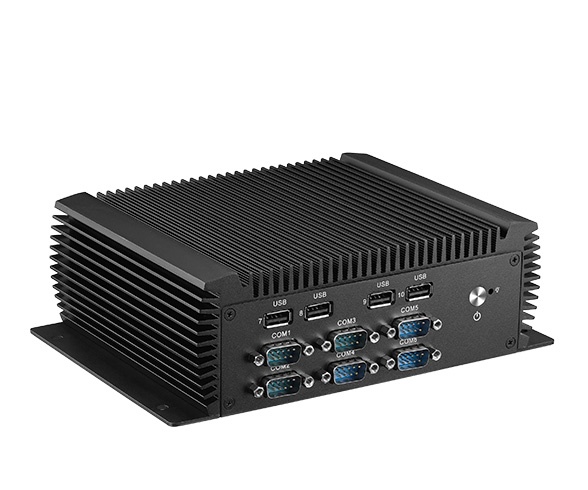

JAW-M3115
Low power machine vision computing platform AI-BOX
Function introduction
- Lower consumption: Intel® 11th CoreTM processor, only 15W power consumption.
- Multiple I/O: 2*Gigabit network, 6*USB3.0, 4*USB2.0, 6*COM, 2*HDMI.
- Multiple Display: 2*HDMI up to 4096*2160@30Hz, 1*LVDS up to 1920*1200@60Hz, 1*eDP up to 3840x2160@60Hz.
- AI-BOX low power computing: suitable for artificial intelligence machine terminals.
Features
Lower Consumption
With Intel® 11th CoreTM i7-1165G7, i5-1135G7, i3-1115G4 (optional), power consumption only 15W.
Multiple I/O
2*Intel Gigabit network port, 6*USB3.0, 4*USB2.0, 6*COM, 2*HDMI.
Multiple Display
2*HDMI: maximum resolution 4096*2160@30Hz; 1*LVDS: maximum resolution 1920*1200@60Hz; 1*eDP: maximum resolution 3840x2160@60Hz.
AI-BOX Low Power Computing
Intel 11th Generation Core Celeron platform, multiple serial ports, multiple USB, multiple interface display supporting three screen display. Suitable for artificial intelligence machine terminals.

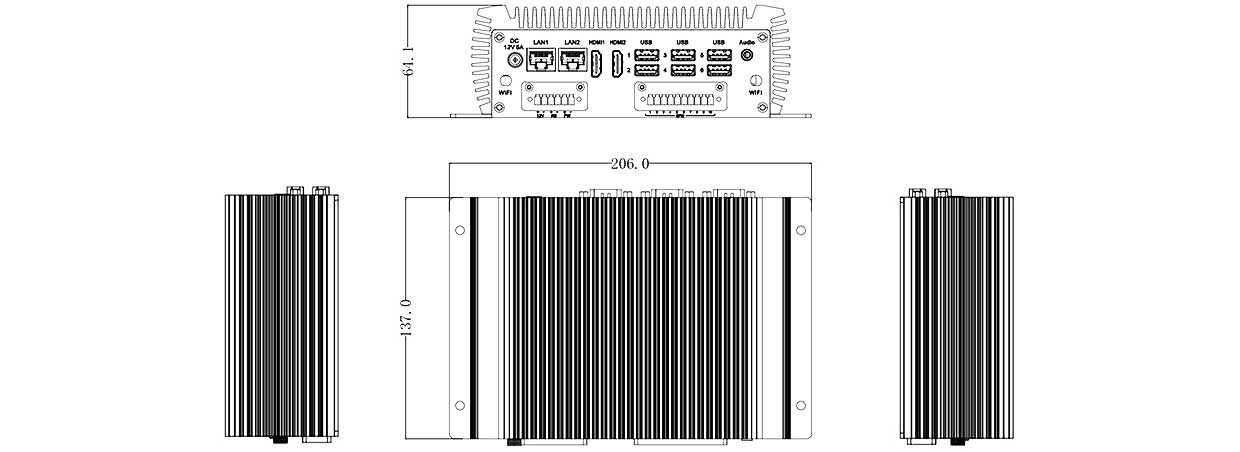

Product Dimension
Technical Specifications
| Features | Details |
|---|---|
| Specification | |
| Model No. | JAW-M3115 |
| Color | Sandblasted oxidation, black matte finish |
| Material | SGCC galvanized steel body |
| Dimension | 206.00 x 137.00 x 64.10 mm (W x D x H) |
| Processor | Intel® 11th CoreTM i3-1115G4 15W default, 12W/28W BIOS |
| Network Port | 2*Intel® 1Gbps PCIe Ethernet Controller, RJ45 |
| Memory | DDR4-3200, 2*SO-DIMM, up to 64 GB |
| Display | 2*HDMI, 1*LVDS/eDP, support 3 screens |
| Storage | Provide 3*M.2, support SSD, WiFi+BT, 4G/5G modules |
| Expansion Interface | 1*M.2 (Key-E, 2230, PCIe+USB, WiFi+BT); 1*M.2 (Key-B, 3052, PCIe/USB 3.0 + USB2.0, 4G/5G) |
| BIOS | AMI UEFI BIOS |
| System | Windows 10, Linux |

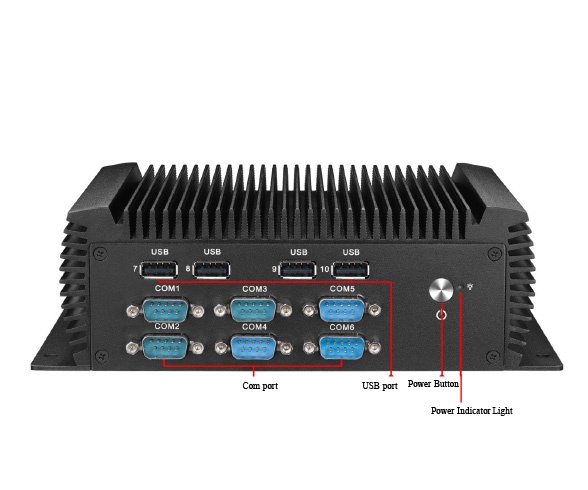

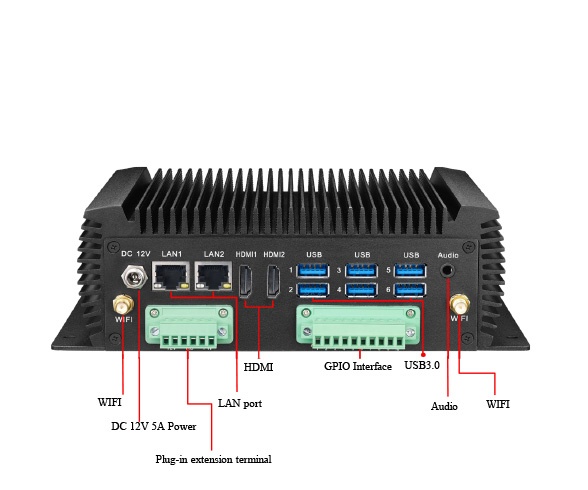

| I/O Interface | LAN: 2*Intel® 1Gbps PCIe Ethernet Controller, RJ45; COM: 3*RS232, 2*RS232/TTL, 1*RS232/RS485/TTL; USB: 6*USB 3.0, 4*USB 2.0; Audio: Realtek® 5.1 channel HDA Codec, with MIC/Line-out and Amplifier; GPIO: 8*Programmable GPIO |
| Thermal Discharge | Fanless heat dissipation |
| Installation Style | Built-in or wall-mounted |
| Temperature | -25°C ~ 75°C |
| Humidity | 5% ~ 95% relative humidity, no condensation |
| Power | Standard Power supply: DC 12V 5A |
