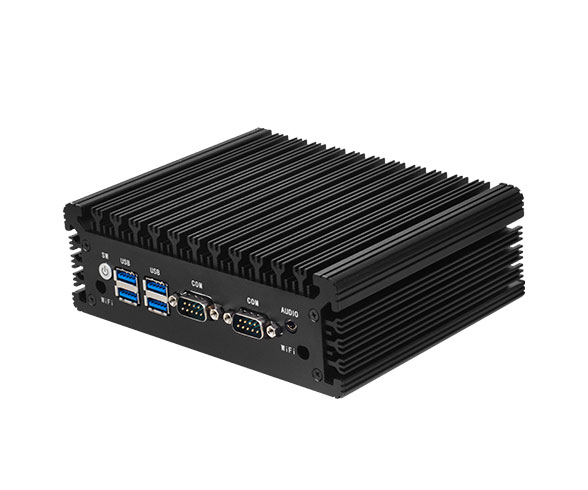

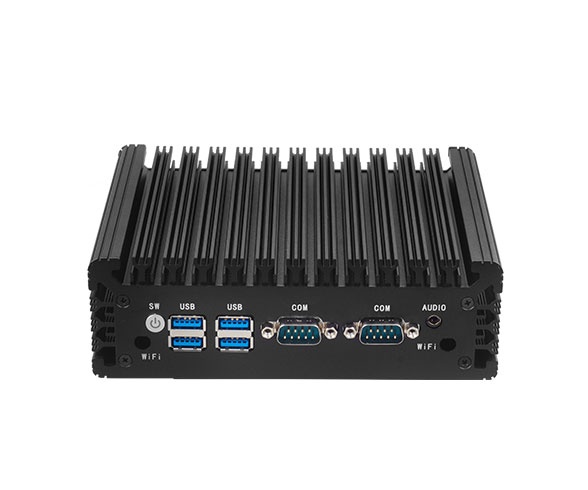

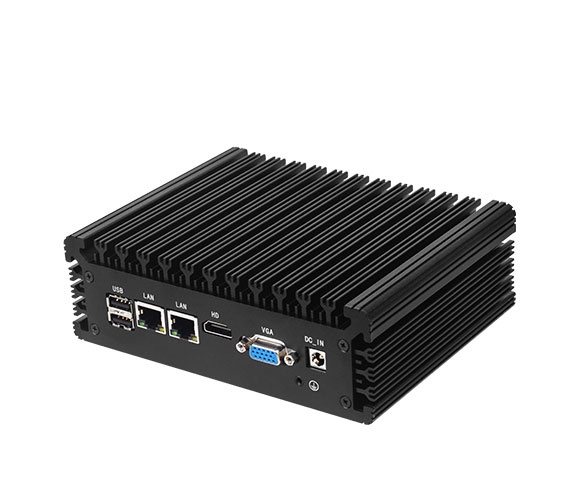

Neso Pro I
Slim and Compact Industrial Mini PC
Function introduction
- Fanless POS cooling construction.
- Slim and compact enclosure design.
- Dual monitor output with HDMI and VGA.
- Optional wall-mount kit for compact space accommodation.
Features
Compact and Flexible
The small footprint and VESA mounting points of the Neso Pro Series allow easy installation in anywhere you need a Point-of-Service system.
Fanless Technology
Fanless design boasts anti-dust and silent operation advantages to meet the requirements of harsh and quiet environments, respectively.
Expandable and Configurable
Connect to a series of POS peripherals and options for greater productivity and flexibility to fit in your store environment.
Technical Specifications
| Features | Details |
|---|---|
| System | |
| Processor | Intel Core i3-6100U Dual-Core, Up to 2.3GHz; Intel Core i5-6200U Dual-Core, Up to 2.8GHz; Intel Core i7-6500U Dual-Core, Up to 3.1GHz |
| Memory | 2GB Standard, DDR3L or DDR4, Up to 8GB/16GB/32GB |
| Storage | mSata or M.2 32GB Standard, Up to 512GB |
| OS | Windows 7/10/11, POSReady7 |
| Interface | |
| USB | 6*External USB 2.0 |
| LAN | 2*RJ45 |
| Display | 1*VGA & 1*HDMI |
| Serial | 2*COM (RS232) |
| Audio | 1*AUDIO |
| Power DC-IN | DC 12V/5A |
| Physical & Environmental | |
| Operating Temperature | 0~50° |
| Storage Temperature | -20°~60° |
| Cooling | Fanless CPU Fan |
| Dimensions (W x H x D) | 165 x 125 x 55 (MM) |
| Packing Dimensions (W x H x D) | 290 x 200 x 90 (MM) |
| Net Weight | 1.05KG |
| Packing Weight | 1.1KG |
| Color | Black |
| Options & Peripherals | |
| Additional Hard Disk | 2.5 inch SATA3.0 SSD or 500GB, 1TB HDD |
| Wall Mount | VESA 50*50 MM |
