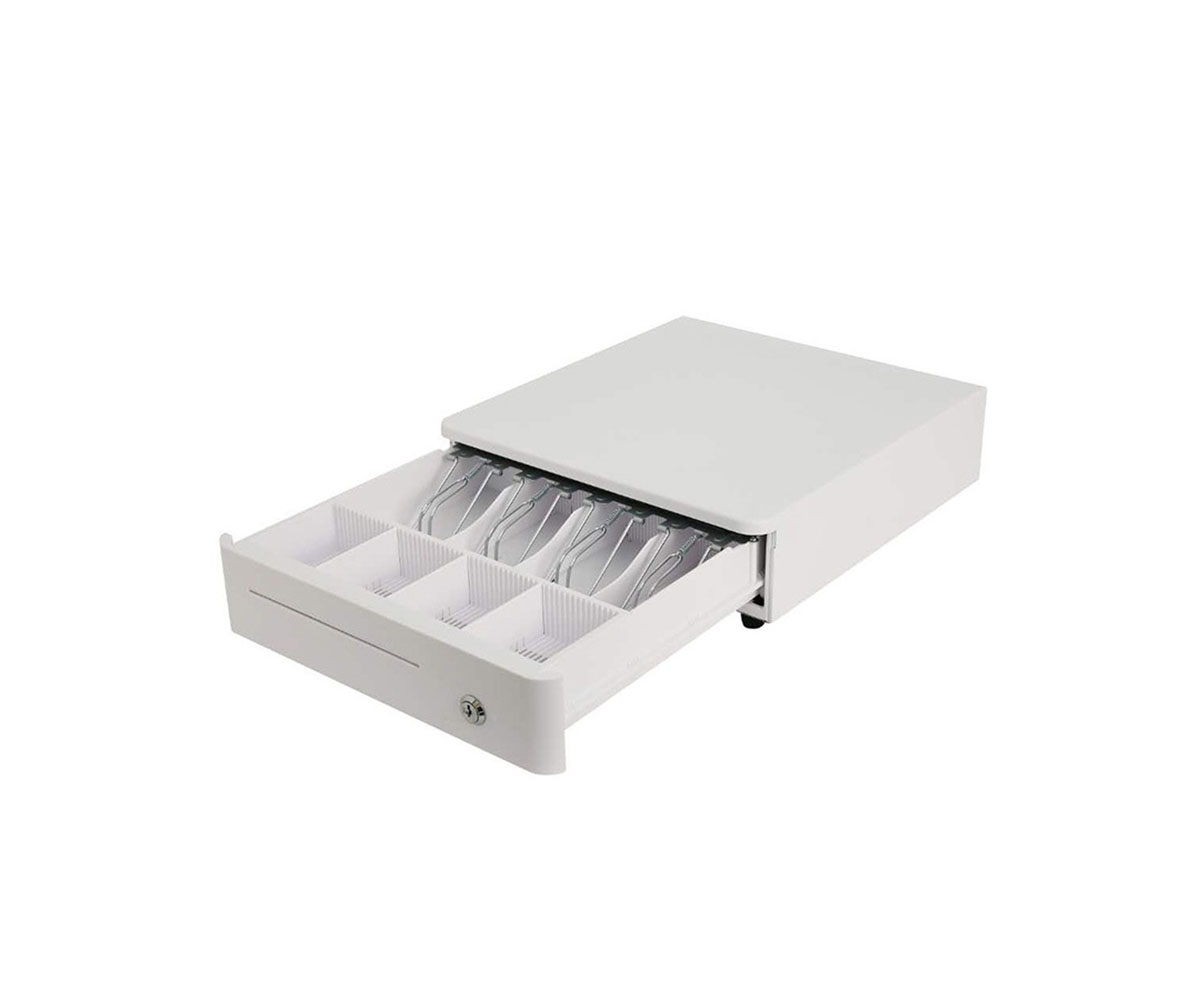

JAW-330H
Cash drawer
Function introduction
- Banknote slot: made of high quality ABS plastic, 4 bill slots, using steel bill holder.
- Coin slot: for storing coins, you can adjust the width of the coin (4 small cells).
- Dimensions: 330 (width) x 355 (length) x 90 (height), unit: mm, height without feet.
Features
Cash Box Parameters
- Banknote slot: made of high quality ABS plastic, 4 bill slots, using steel bill holder.
- Coin slot: for storing coins, you can adjust the width of the coin (4 small cells).
- Checking port: checks, debit card receipts and banknotes can be deposited through this port to the compartment underneath the coin slot.
- Service life: ≥ 5 million times.
- Cash box lock: three-lock structure with manual unpacking, electric drive unpacking and locking functions.
- Dimensions: 330 (width) x 355 (length) x 90 (height) mm, height without feet.
- Weight: net weight about 3.5kg.

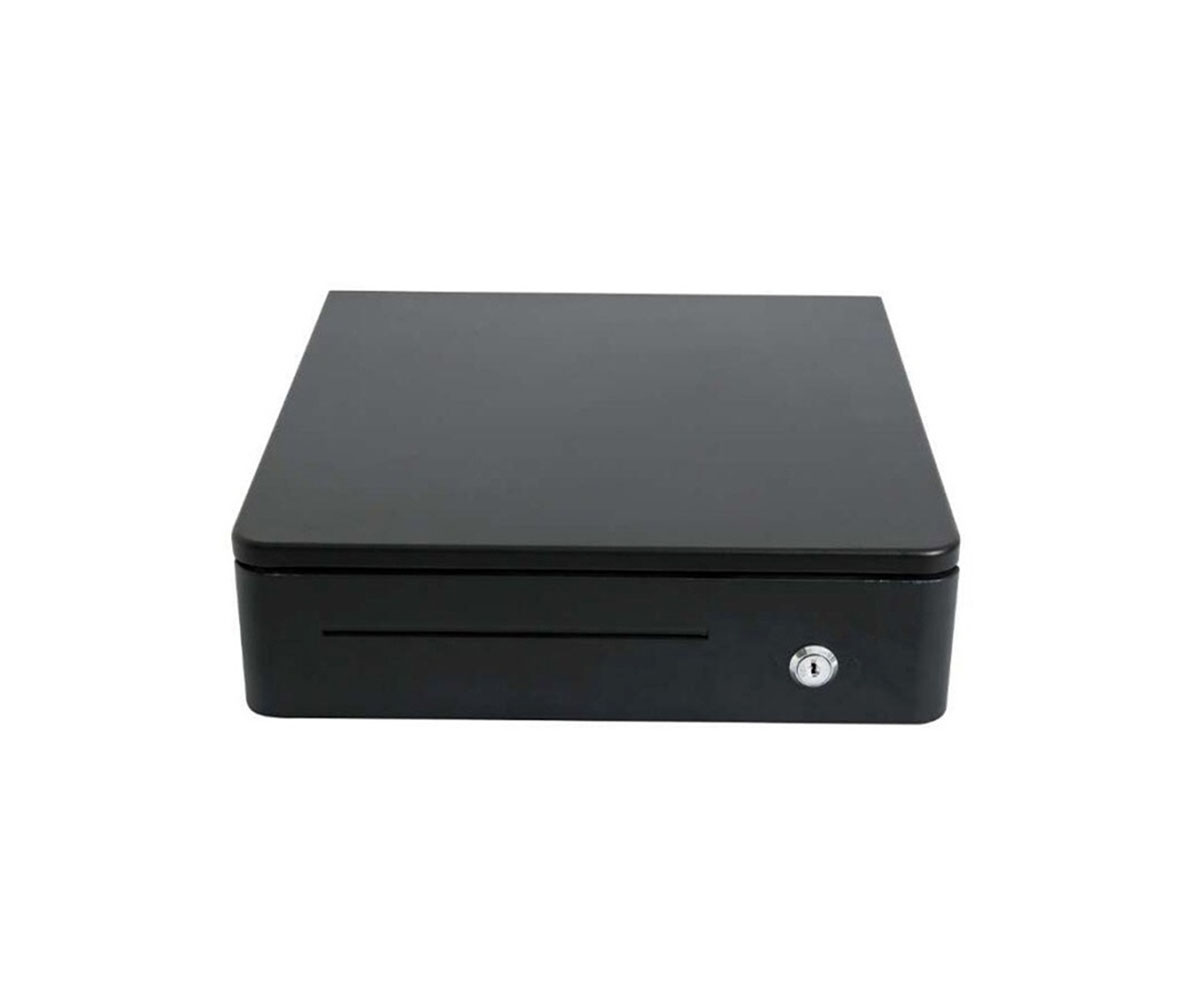

- Color: black and white optional.
Electrical Indicators
- Rated pulse width: 100~200ms.
- Drive voltage: DC12, 1A.
Use Environment
- Temperature: -10~40°C.
- Relative humidity: 40~95%.
Packing List
- Cash box x 1 set.
- Cable x 1.
- Key x 2.
Technical Specifications
| Features | Details |
|---|---|
| Specification | |
| Dimension | 330W x 355D x 90H (excluding feet height) |
| Dimension (Including Feet) | 330W x 355D x 100H (including feet height) |
| Net Weight | 3.5KG |
| Gross Weight | 4.0KG |
| Mechanism | Roller |
| Material | Metal, ABS Plastic |
| Cash Tray | 4 Bills |
| Coin Tray | 4 coins, adjustable |
| Voltage | DC 12V, 1A |
| Connector | RJ11 |
| Color | Black/White |
| Lockset | 3 Positions |
| Rated Pulse Width | 100~200ms |
| Working Temperature | -10~40°C |
| Relative Humidity | 40-95% |
