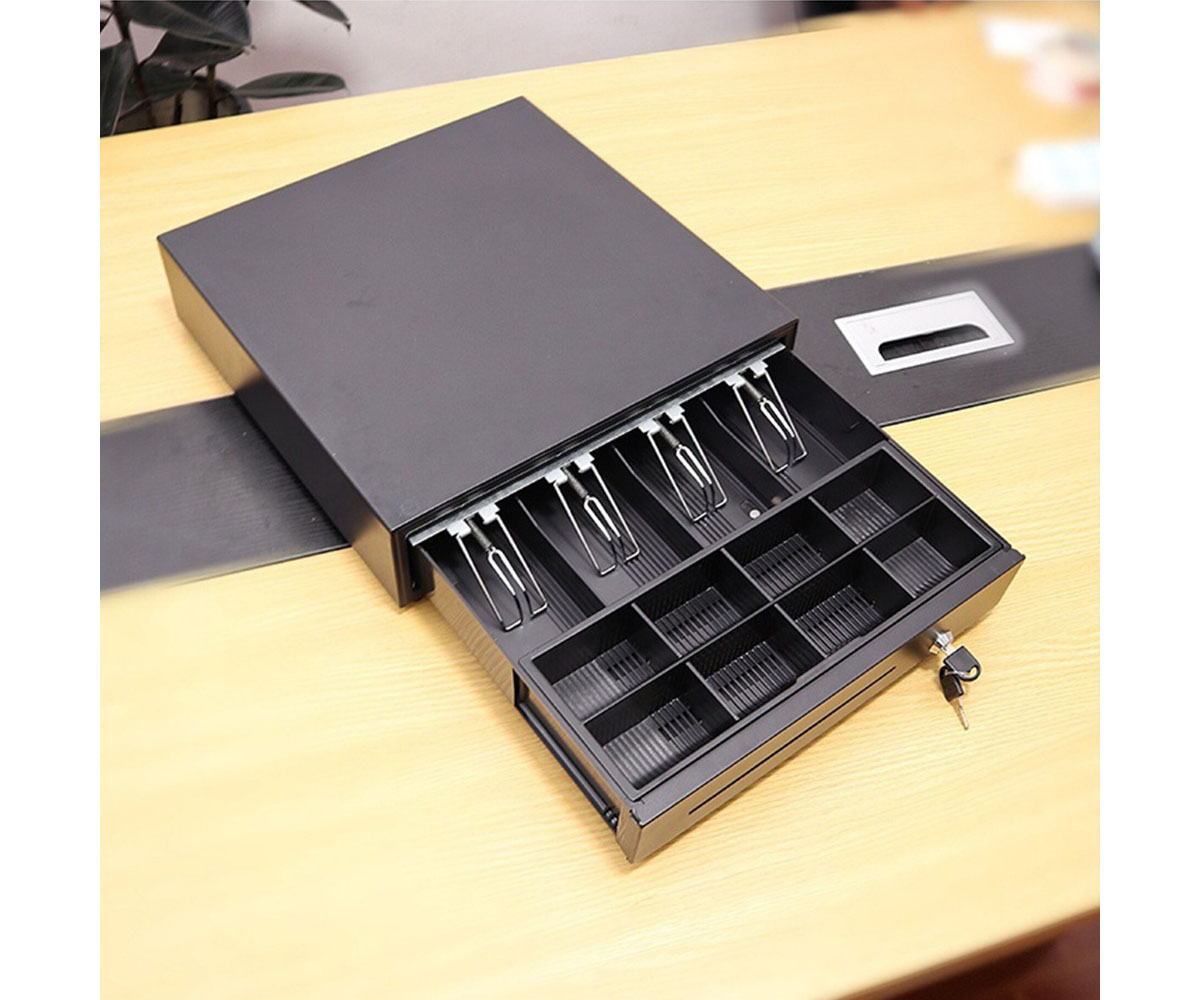

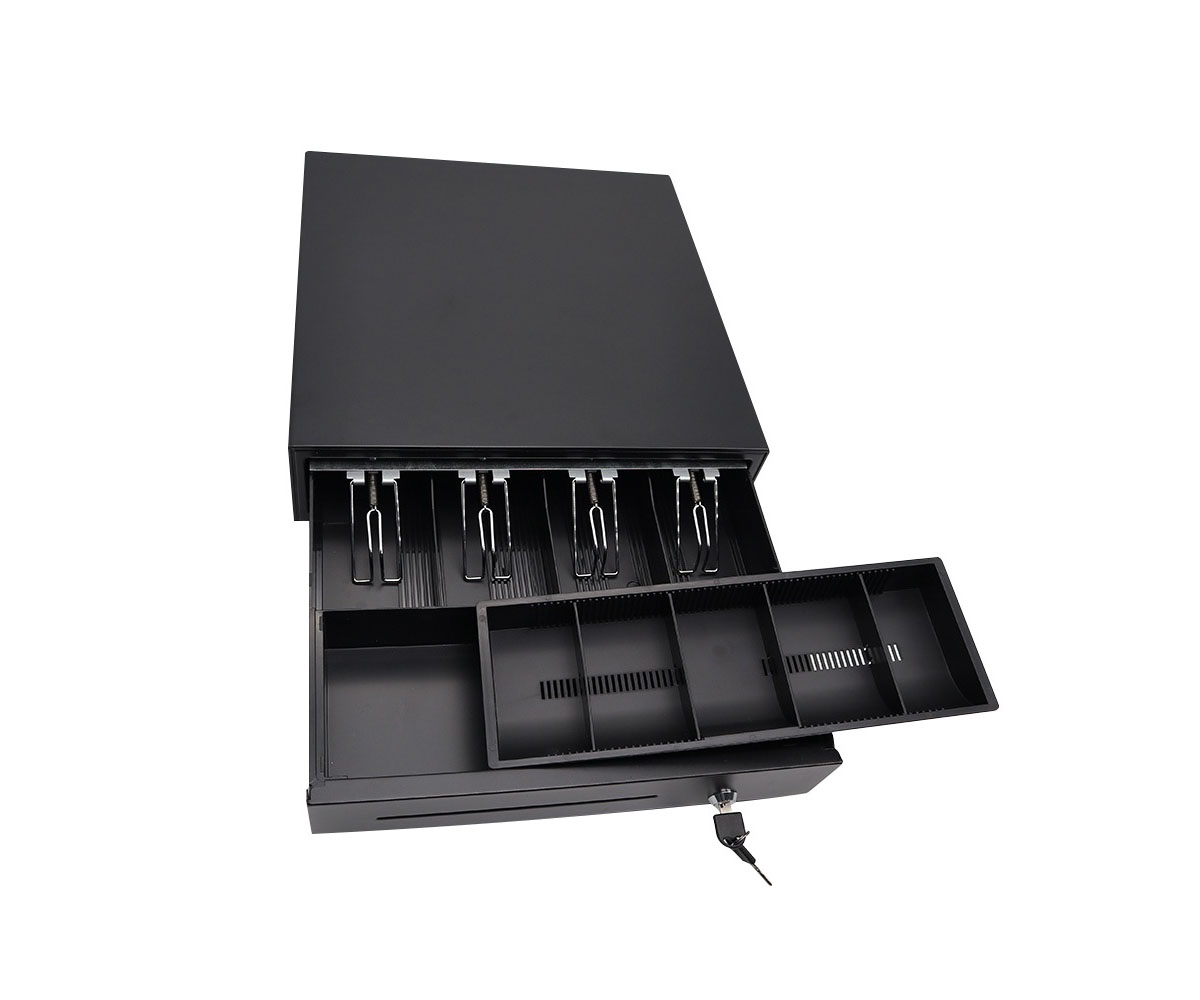

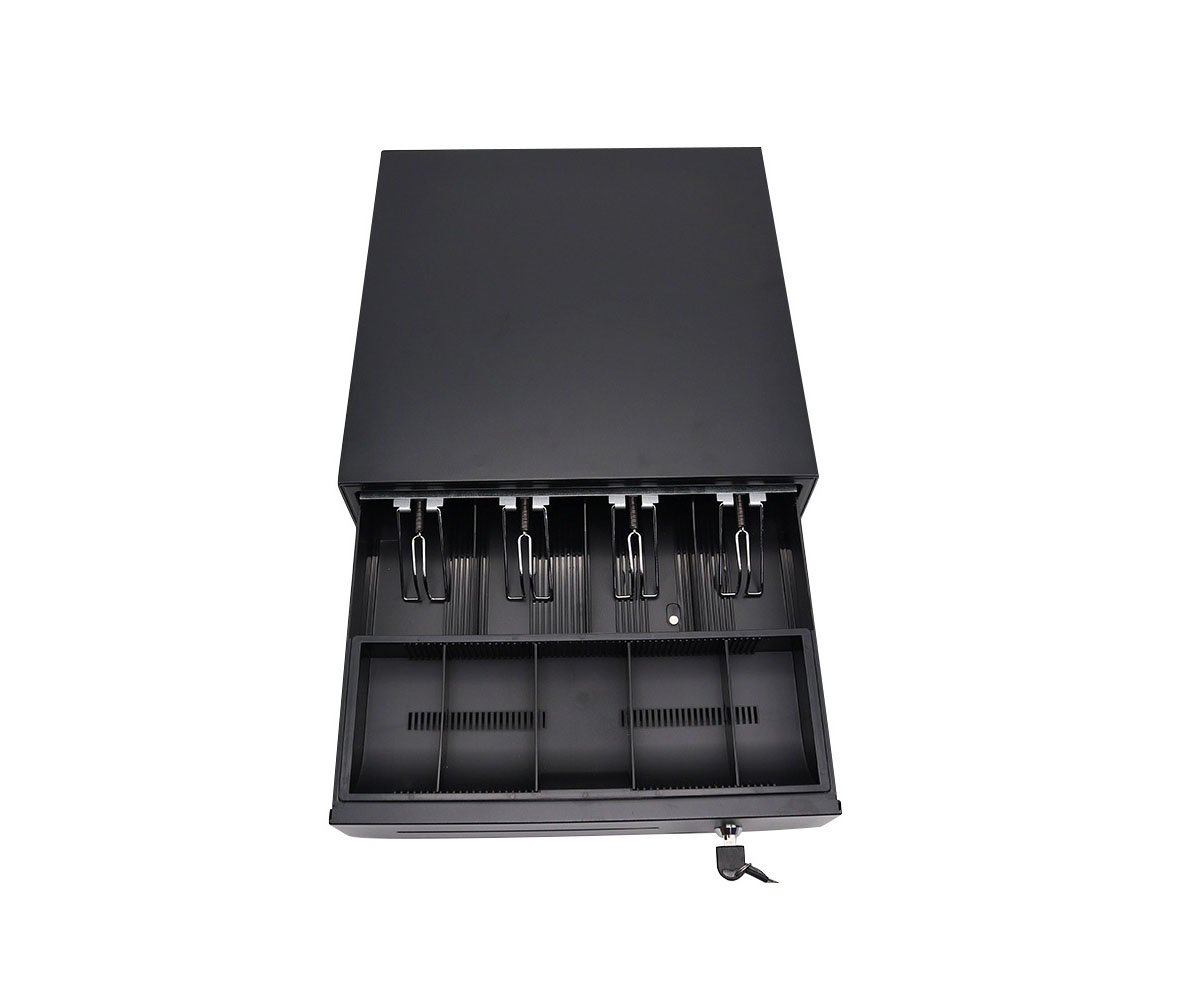

JAW-405B
Cash drawer
Function introduction
- Banknote slot: made of high quality ABS plastic, 4 bill slots, using steel bill holder.
- Coin slot: for storing coins, you can adjust the width of the coin (8 small cells).
- Cash box lock: three-lock structure with manual unpacking, electric drive unpacking and locking functions.
- Dimensions: 405 (width) x 410 (length) x 100 (height), unit: mm, height without feet.
Features
Cash Box Parameters
- Banknote slot: made of high quality ABS plastic, 4 bill slots, using steel bill holder.
- Coin slot: for storing coins, you can adjust the width of the coin (8 small cells).
- Checking port: checks, debit card receipts and banknotes can be deposited through this port to the compartment underneath the coin slot.
- Service life: ≥ 1 million times.
- Cash box lock: three-lock structure with manual unpacking, electric drive unpacking and locking functions.
- Dimensions: 405 (width) x 410 (length) x 100 (height) mm, height without feet.
- Weight: net weight about 5.4kg, gross weight about 6.0kg.
- Color: black and white optional.
Electrical Indicators
- Rated pulse width: 40~150ms.
- Drive voltage: DC12, 1A.
Use Environment
- Temperature: -10~40°C.
- Relative humidity: 40~95%.
Technical Specifications
| Features | Details |
|---|---|
| Specification | |
| Dimension | 405W x 410D x 100H (excluding feet height) |
| Dimension (Including Feet) | 405W x 410D x 110H (including feet height) |
| Net Weight | 5.4KG |
| Gross Weight | 6.0KG |
| Mechanism | Roller |
| Material | Metal, ABS Plastic |
| Cash Tray | 4/5 Bills |
| Coin Tray | 8 coins, adjustable and removable |
| Voltage | DC 12V, 1A |
| Connector | RJ11 |
| Color | Black/White |
| Lockset | 3 Positions |
| Rated Pulse Width | 40~150ms |
| Working Temperature | -10~40°C |
| Relative Humidity | 40-95% |
