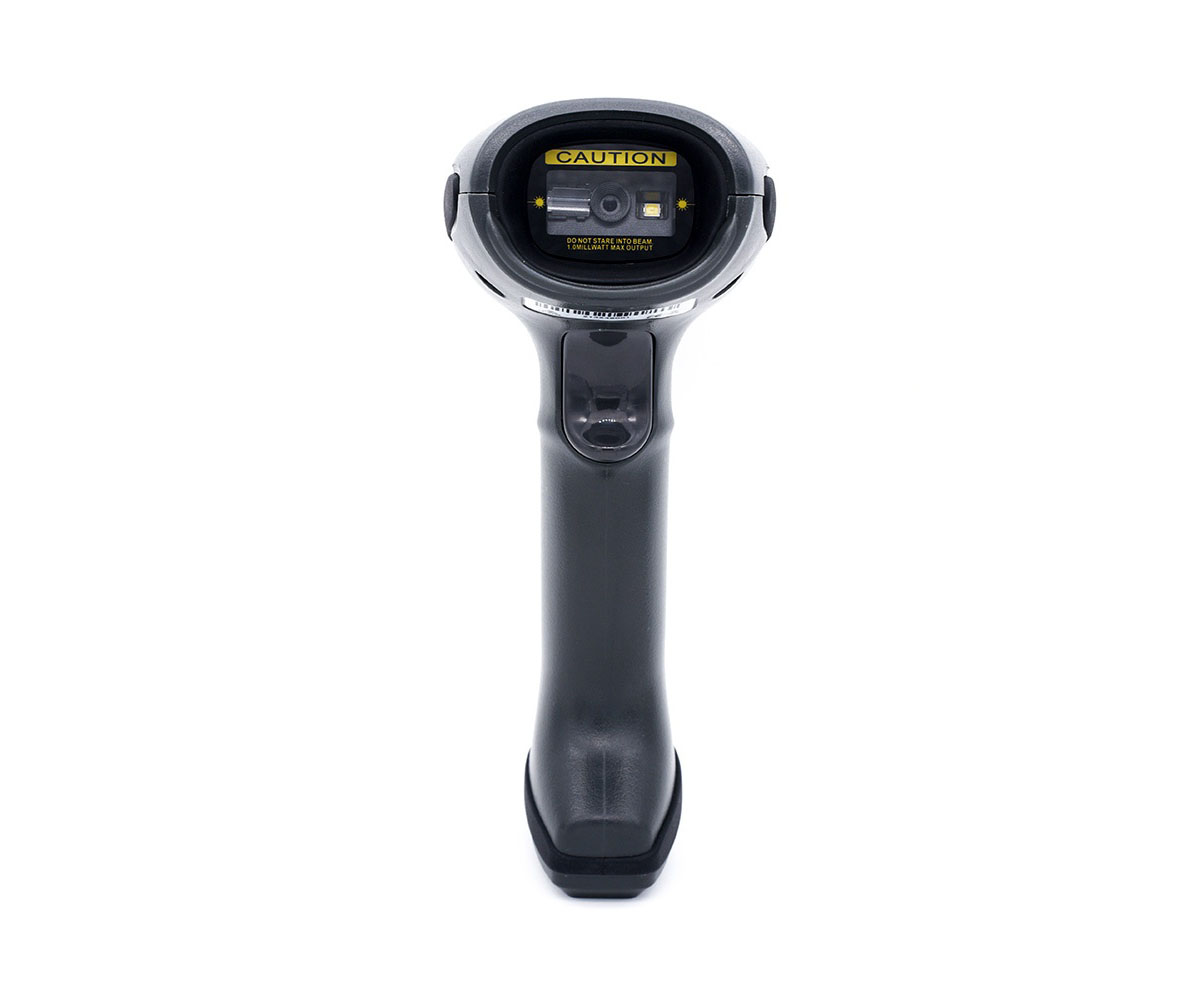

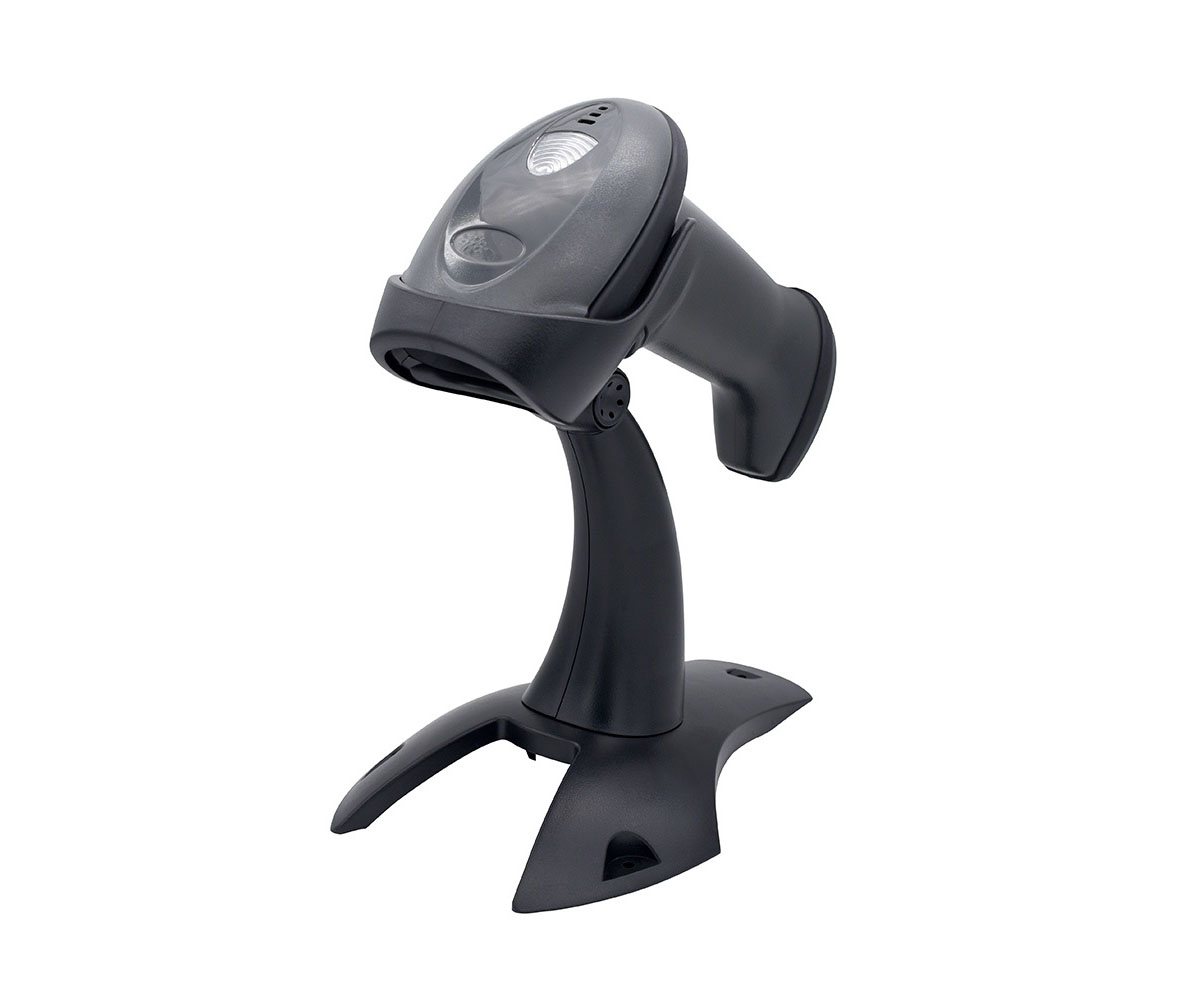

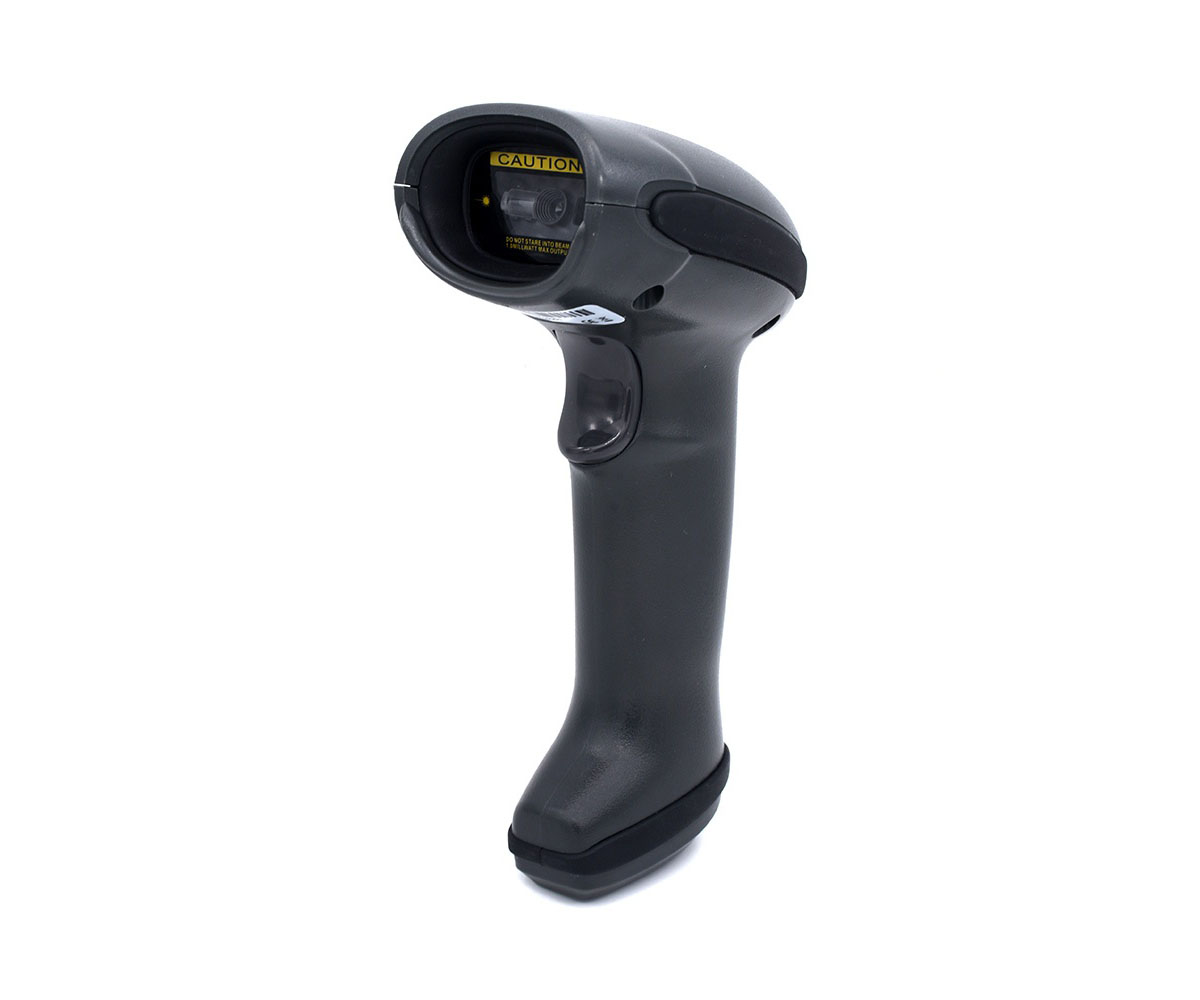

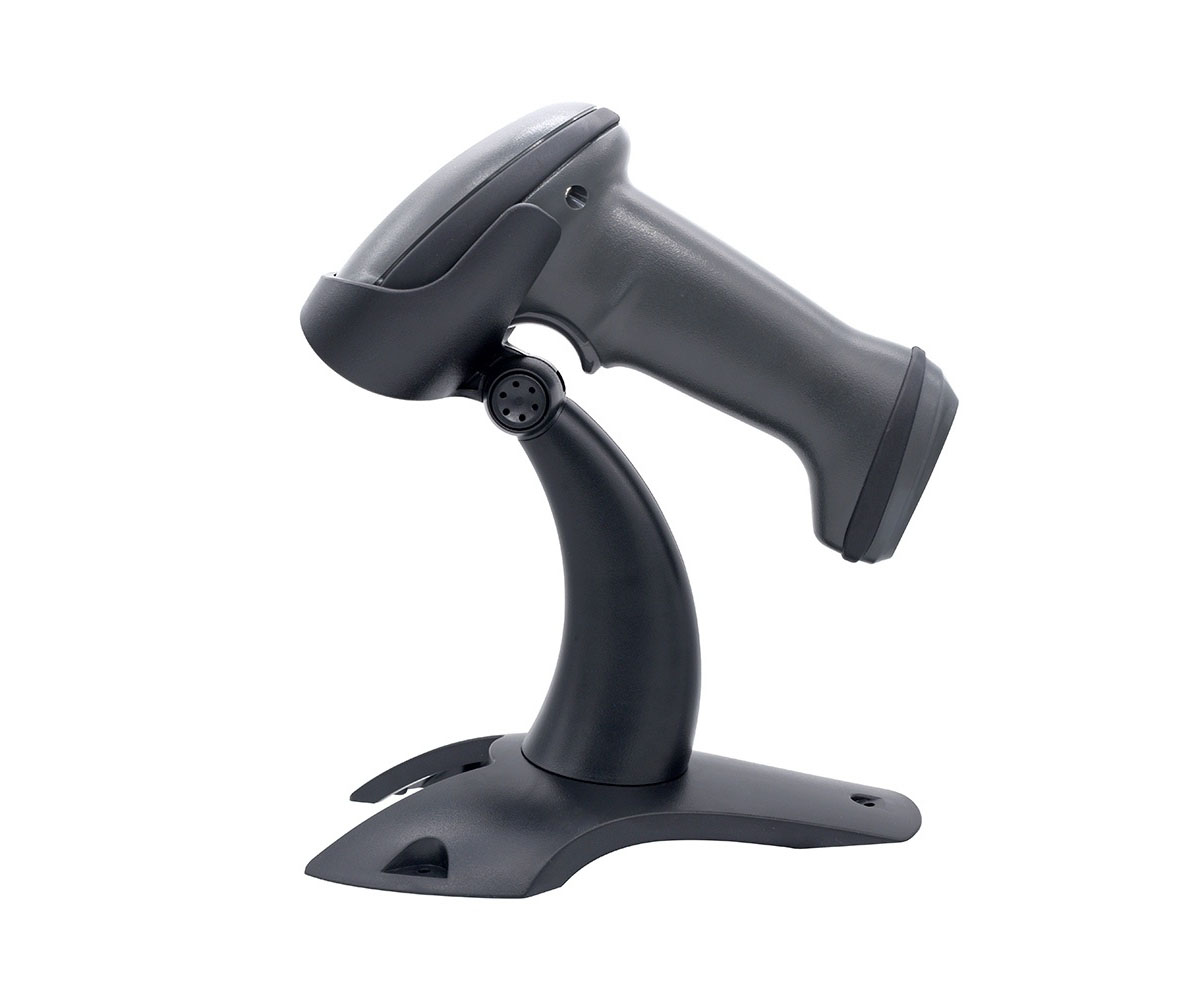

JAW-BS6208
2D scanner
Function introduction
- New decoding chip to interpret various 1D codes/QR codes.
- Plug and play, easy to set up, and can be used quickly with other office equipment.
- Wire life is longer lasting.
- Application areas: mainly used in the fields of business super, monopoly, logistics, warehousing, payment, ticket inspection, etc.
Features
- New decoding chip to interpret various 1D codes/QR codes.
- Plug and play, easy to set up, and can be used quickly with other office equipment.
- Wire life is longer lasting.
- Application areas: mainly used in the fields of business super, monopoly, logistics, warehousing, payment, ticket inspection, etc.
Technical Specifications
| Features | Details |
|---|---|
| Performance Parameters | |
| Light Sources | 617nm LED Aimer, White LED |
| Supported Symbologies | 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5. 2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, HanXin Code. |
| Scan Type | Image CMOS |
| Resolution | 640 x 480 |
| Scan Method | Manually/Continuous/Automatic inductive scanning |
| Scan Angle | Yaw ±55°, Rotation 360°, Pitch ±55° |
| Contrast | ≥20% |
| Precision | ≥5mil |
| Depth of Scan Field | EAN13 50-200MM (13MIL); QR 25-240MM (20MIL); PDF147 30-130MM (6.67MIL) |
| Error Rate | Less than 1/5 million |
| Interfaces | USB-HID, USB-COM, RS232 |
| Electrical Parameters | |
| Voltage | DC5V±5% |
| Operating Current | 170mA |
| Standby Current | USB 25mA; RS232 2uA |
| Physical & Environment | |
| Material | ABS+PC |
| Weight | 185G |
| Dimension | 102mm x 71mm x 177mm |
| Cable Length | 1.8M |
| Temperature | Operating Temp: -20°C ~ +45°C Storage Temp: -40°C ~ +70°C |
| Humidity | 5%~95% (Non-condensing) |
| Ambient Lighting | 0~100000LUX |
