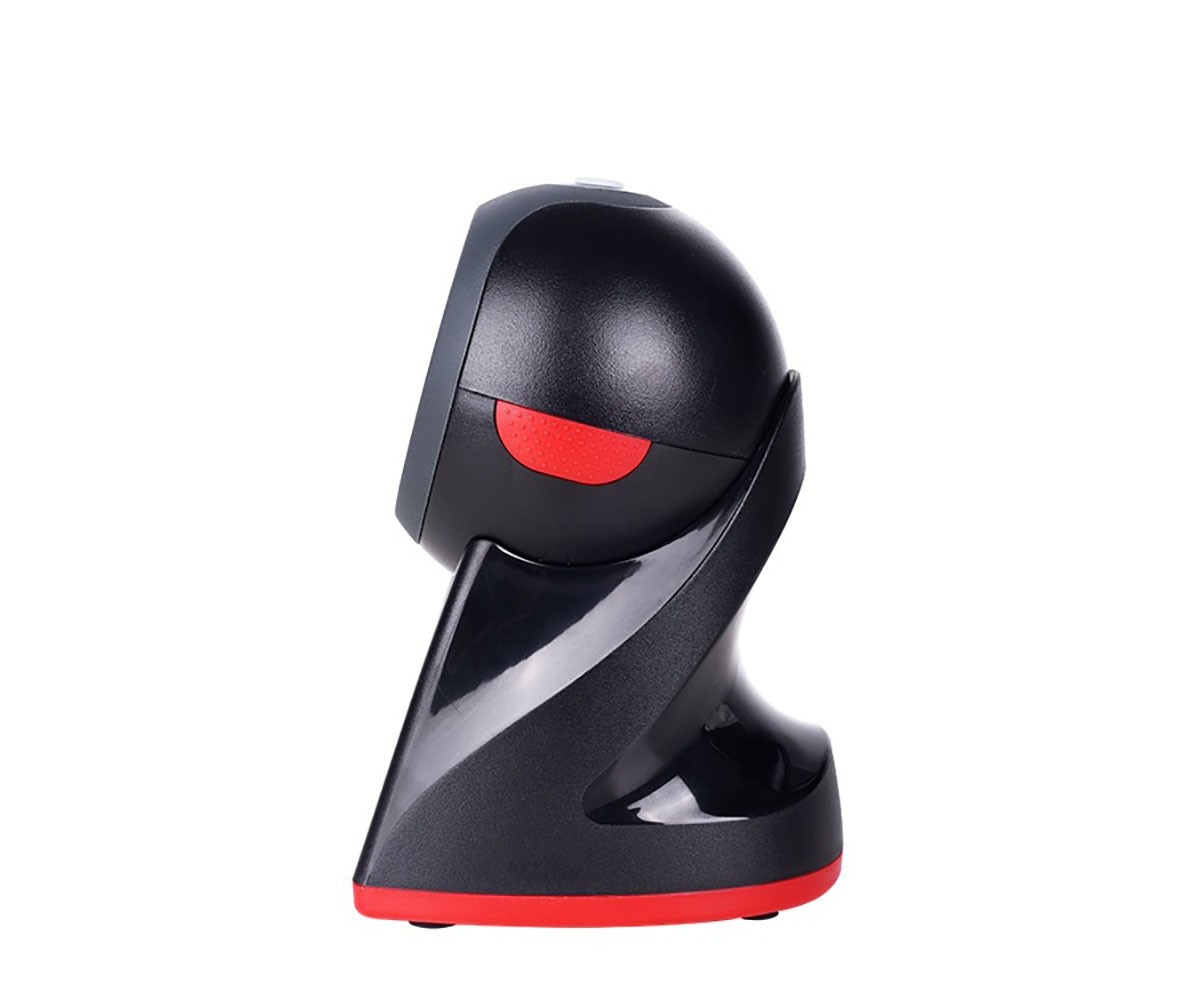

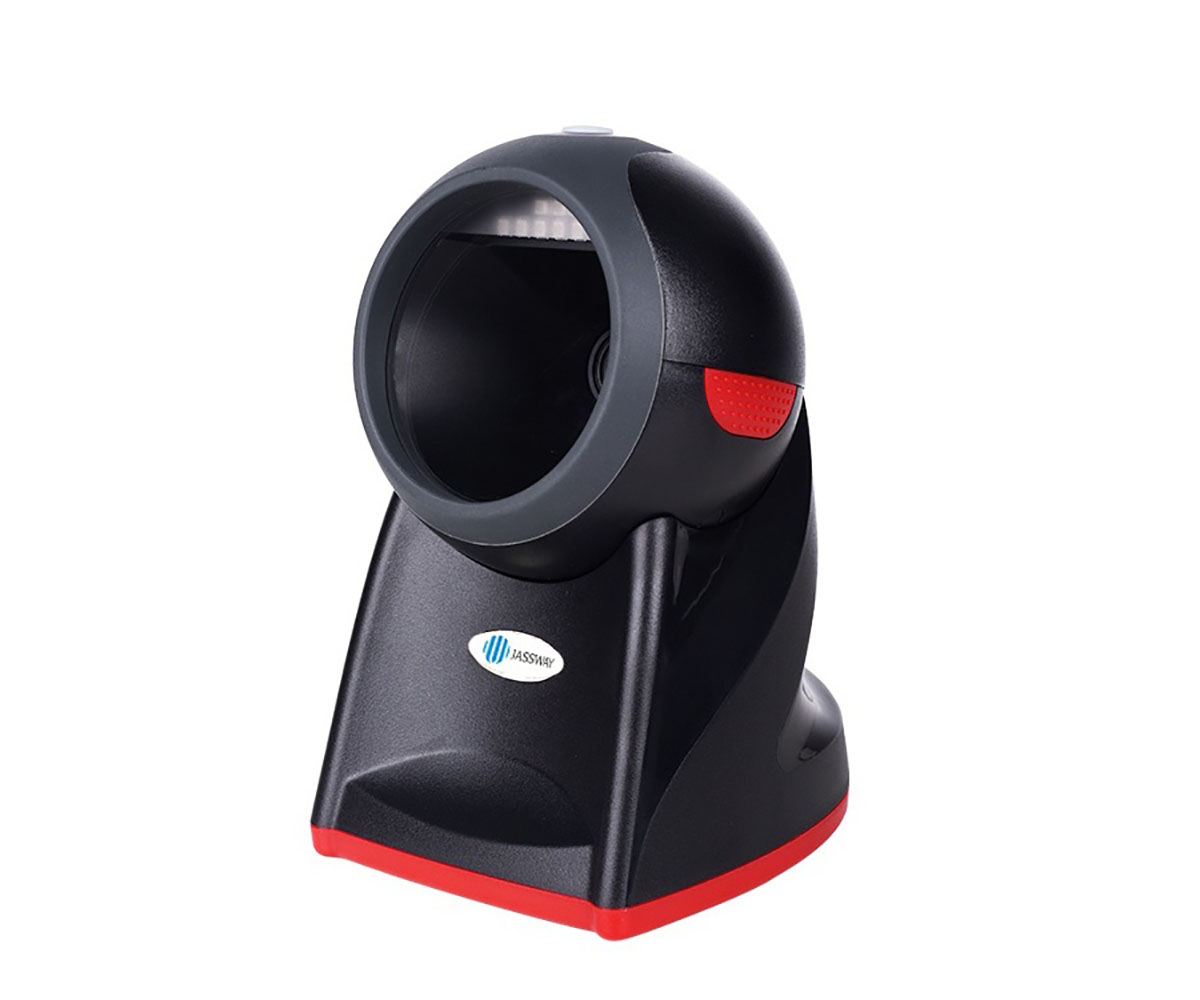

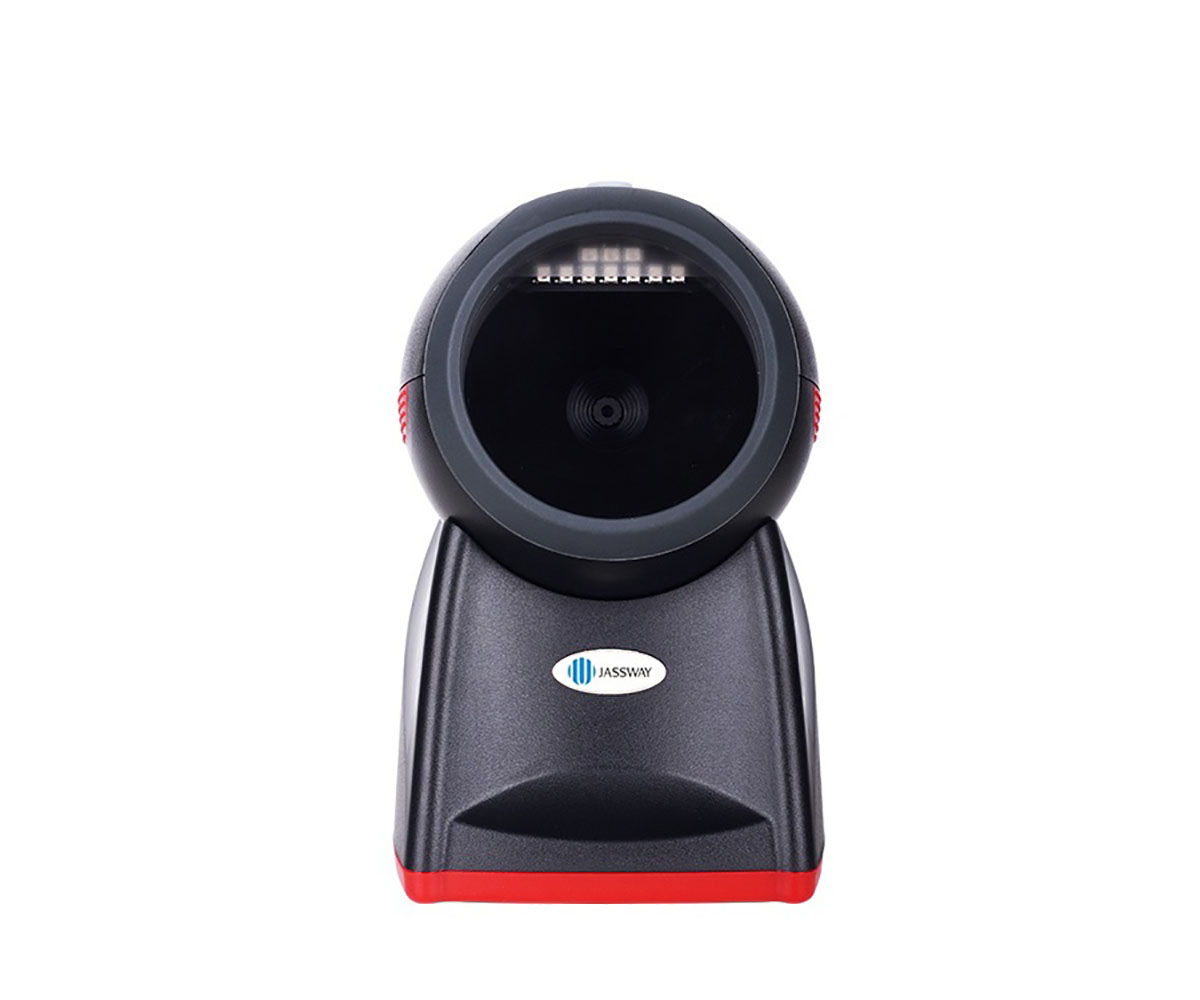

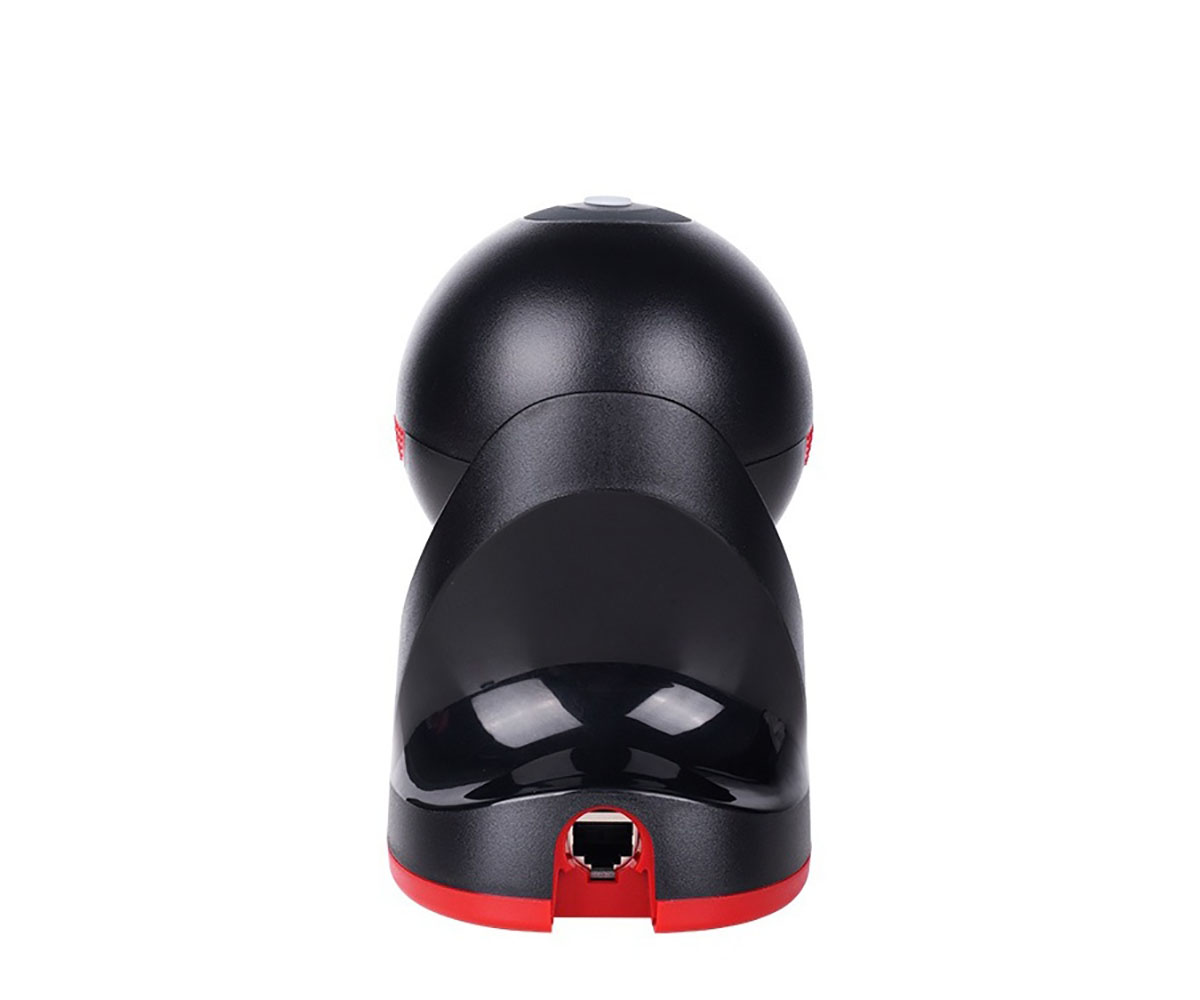

JAW-DS8608
2D Table Scanner
Function introduction
- New decoding chip to interpret various QR codes.
- Plug and play, easy to set up, and can be used quickly with other office equipment.
- Error rate as low as 1/5 million times, accurate and reliable.
- With touch button.
- Professional technology, can scan WeChat, Alipay barcode.
- Application areas: mainly used in supermarkets, specialty stores, retail stores, payment and other fields.
Features
- New decoding chip to interpret various QR codes.
- Plug and play, easy to set up, and can be used quickly with other office equipment.
- Error rate as low as 1/5 million times, accurate and reliable.
- With touch button.
- Professional technology, can scan WeChat, Alipay barcode.
Technical Specifications
| Features | Details |
|---|---|
| Performance Parameters | |
| Light Sources | 630nm red LED |
| Indicator | LED, Speaker |
| Supported Symbologies | 1D: UPC, EAN, Code128, AIM-128, ISSN, ISBN, Code39, Code39 Full ASCII, Code32, Code11, Code93, Matrix 2 of 5, Interleaved 2 of 5, Industrial 2 of 5, Codebar, MSI-Plessey, PLessey ITF-14, ITF-6, GS1-Databar(RSS). 2D: PDF417, Data Matrix, QR Code, Hanxin. |
| Scan Mode | Automatic inductive |
| Resolution | 640 x 480 |
| Field of View | Horizontal: 46.1°; Vertical: 30.4° |
| Depth of Scan Field | 3 mil (Code 39), 7.5 mil (Data Matrix), 4 mil (PDF 417) |
| Interfaces | USB-HID, USB-COM, RS232 |
| Electrical Parameters | |
| Voltage | DC5V±5% |
| Operating Current | 350mA |
| Physical & Environment | |
| Material | ABS+PC |
| Weight | 315G |
| Dimension | 96mm x 108mm x 150mm |
| Cable Length | 2M |
| Temperature | Operating Temp: 0°C ~ +50°C Storage Temp: -40°C ~ +70°C |
| Humidity | 0%~95% (Non-condensing) |
Video
Video content coming soon.
Accessory
Accessory details coming soon.
