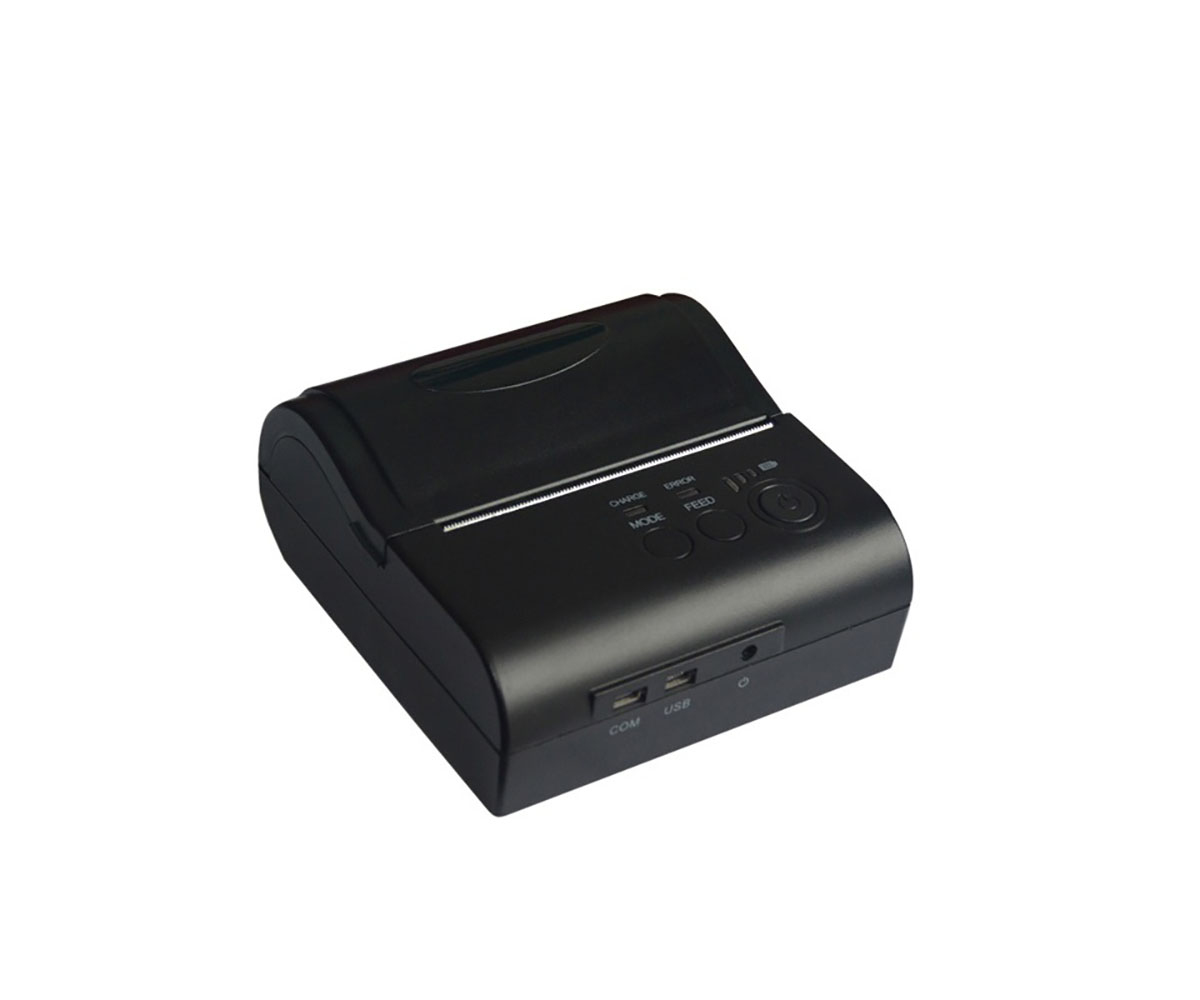

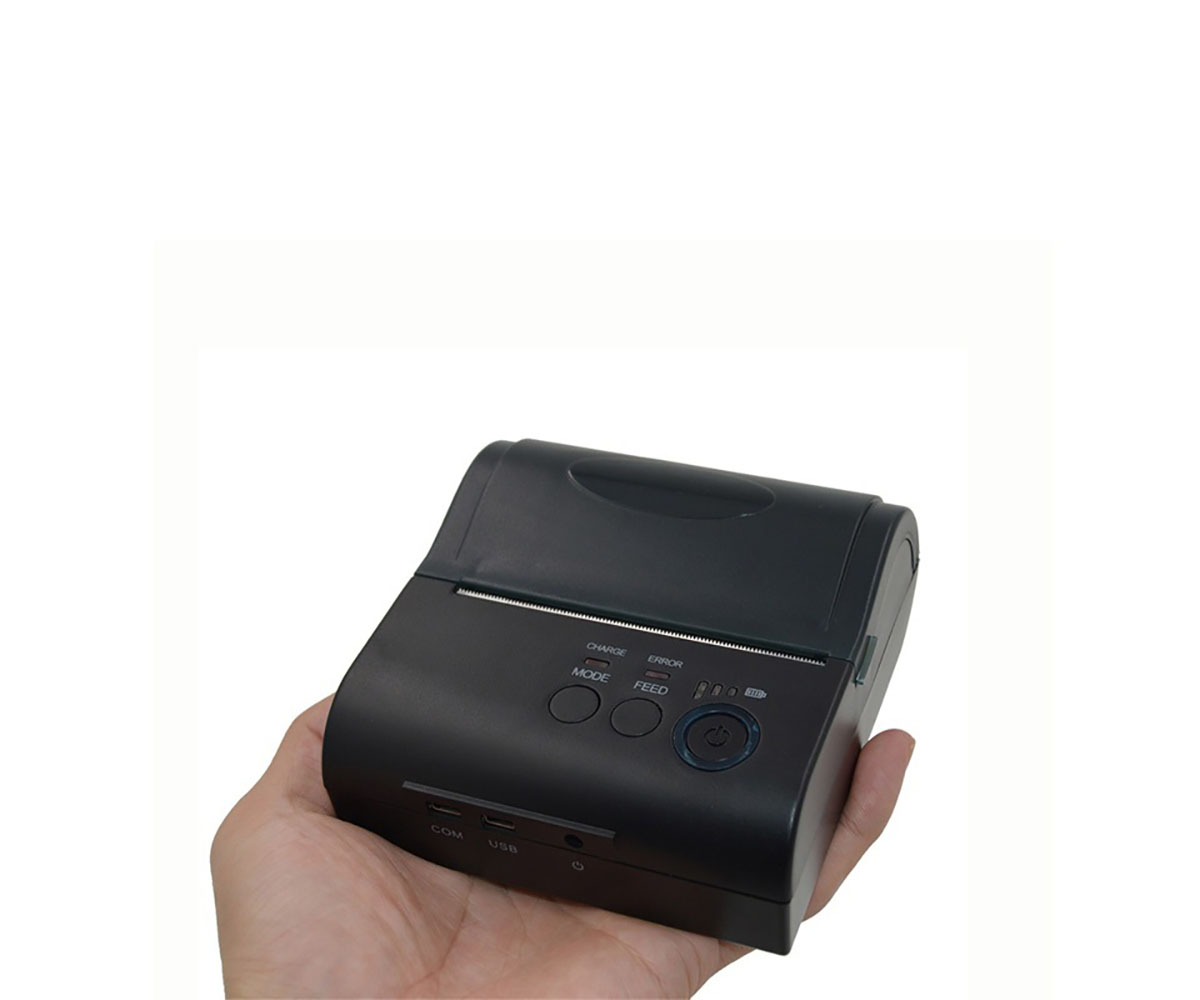

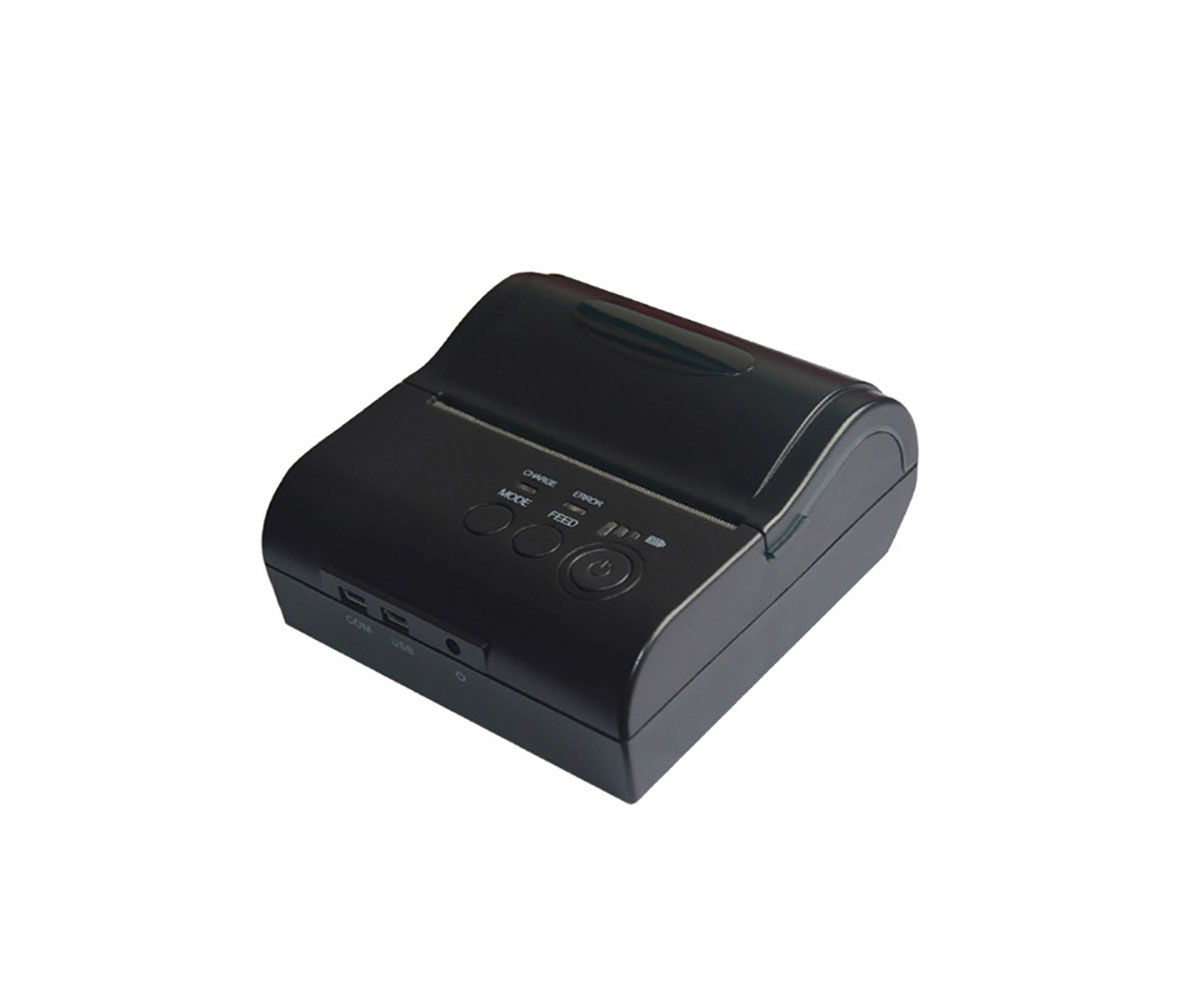

JAW-RH8001
80 Bluetooth portable thermal printer
Function introduction
- Applies to mobile products for supporting use, suited to outdoor work environments.
- Small size, light weight, reliable performance, simple to connect, easy to use.
- Compatible with Android and iOS operating systems.
- Reasonable structure, loading paper easily, convenient in operation and maintenance.

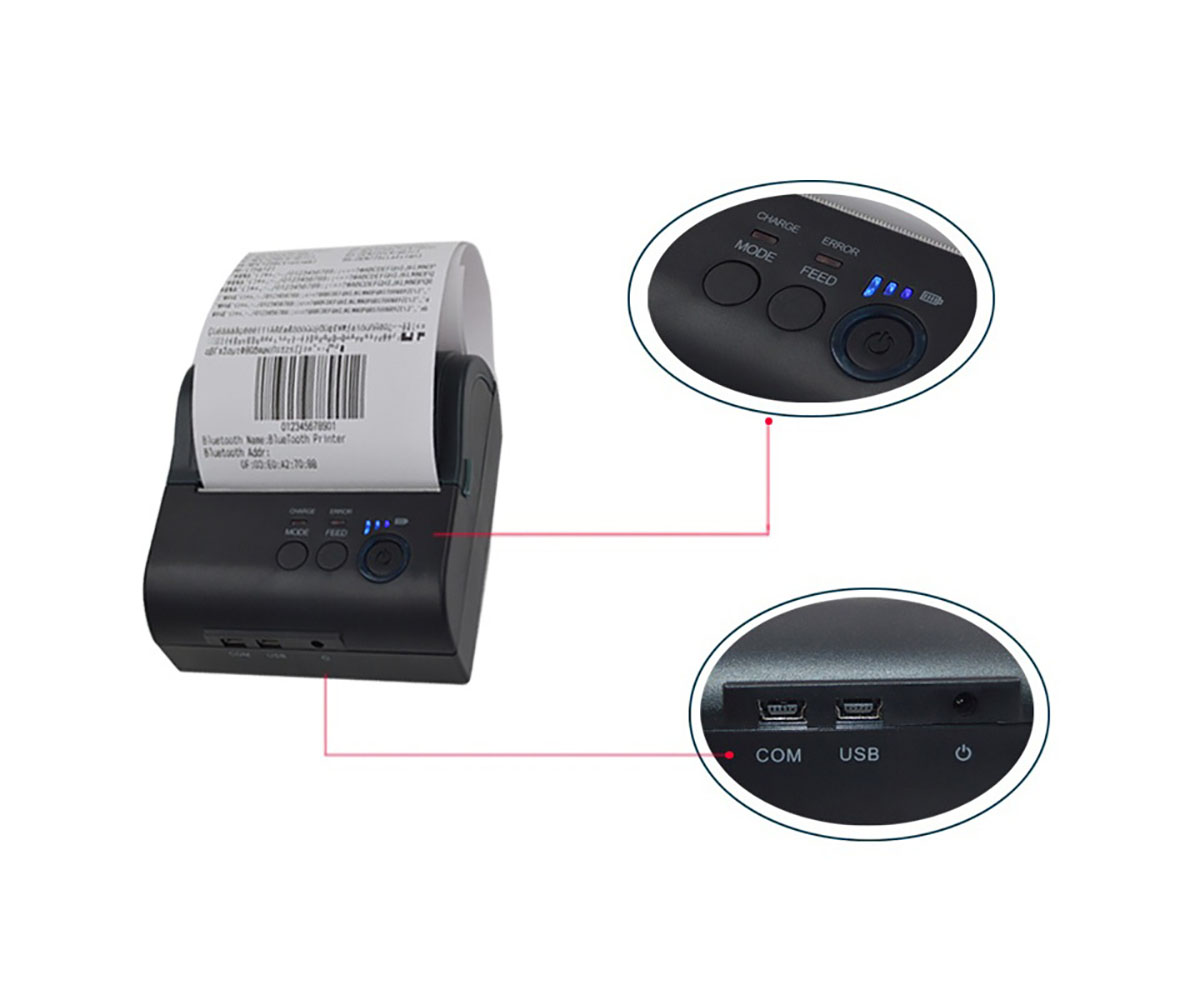

- LED indicator (know well rest power at any time).
Features
- High speed printing.
- 7 days standby time.
- Easy to operate (portable).
- Easy paper loading.
Technical Specifications
| Features | Details |
|---|---|
| Printing | |
| Printing Method | Direct Thermal |
| Printing Speed | 90mm/s |
| Paper Width | 79±1mm |
| Print Width | 72mm |
| Print Parameters | Support download the Logo trademark |
| Roll Diameter | <40mm |
| Paper Thickness | 0.06~0.08mm |
| Column Capacity | 576 dots/line, 512 dots/line (80mm) |
| Line Space | Space 3.75mm (changeable using commands) |
| Character Size | 384 dots/line; FontA: 12*24 dots, 1.5(W)*3.0(H)mm; FontB: 9*17 dots, 1.1(W)*2.1(H)mm; Simplified/Traditional: 24*24 dots, 3.0(W)*3.0(H)mm |
| Interfaces | |
| Interfaces | Standard RS232/USB, Bluetooth 2.0/SPP agreement or infrared/IRCOMM agreement (optional) |
| Printing Chinese Character | Chinese: simplified Chinese 24x24 point, support 18030 font library, support Taiwan and HK traditional (complex font); ANK: ANK Characters |
| Code Page | OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/Greek/Hebrew/EastEurope/Iran/WPC1252/OEM866/OEM852/OEM858/IranII/Latvian/Arabic/PT151,1251/OEM747/WPC1257/Vietnam/OEM864/Hebrew/WPC1255/Thai |
| Power | |
| Power Supply | Rechargeable lithium batteries |
| Battery | 7.4VDC/2000mA |
| Charging Mode | DC 9V/1.5-2A, support the battery display function |
| Physical & Environment | |
| Color | Black |
| Dimensions (W x H x D) | 104 x 100 x 46 (MM) |
| Packing Dimensions (W x H x D) | 150 x 150 x 100 (MM) |
| Net Weight | 0.5KG |
| Packing Weight | 1.0KG |
| Temperature | Operating Temp: -10°C ~ +50°C, Storage Temp: -40°C ~ +55°C |
| Humidity | Operating Humidity: 10%~90%, Storage Humidity: <93% (40°C) |
| Reliability | Printer head life: 100KM |
| Software | |
| Emulation | ESC/POS/STAR Command |
| Driver | Windows/JPOS/Linux/Android/Mac |
| Utility | Windows & Linux test Utility |
| SDK | iOS/Android/Windows |
