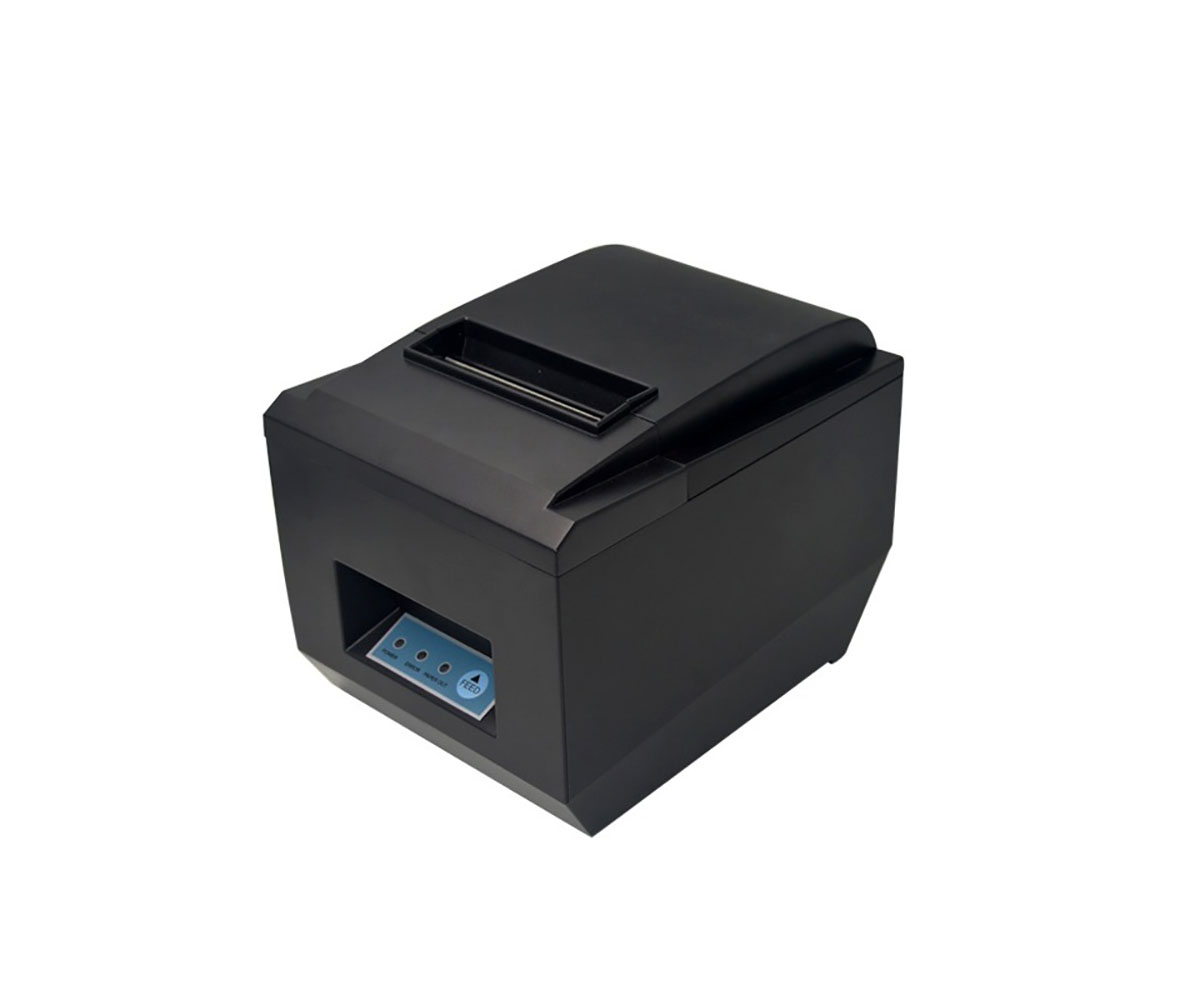

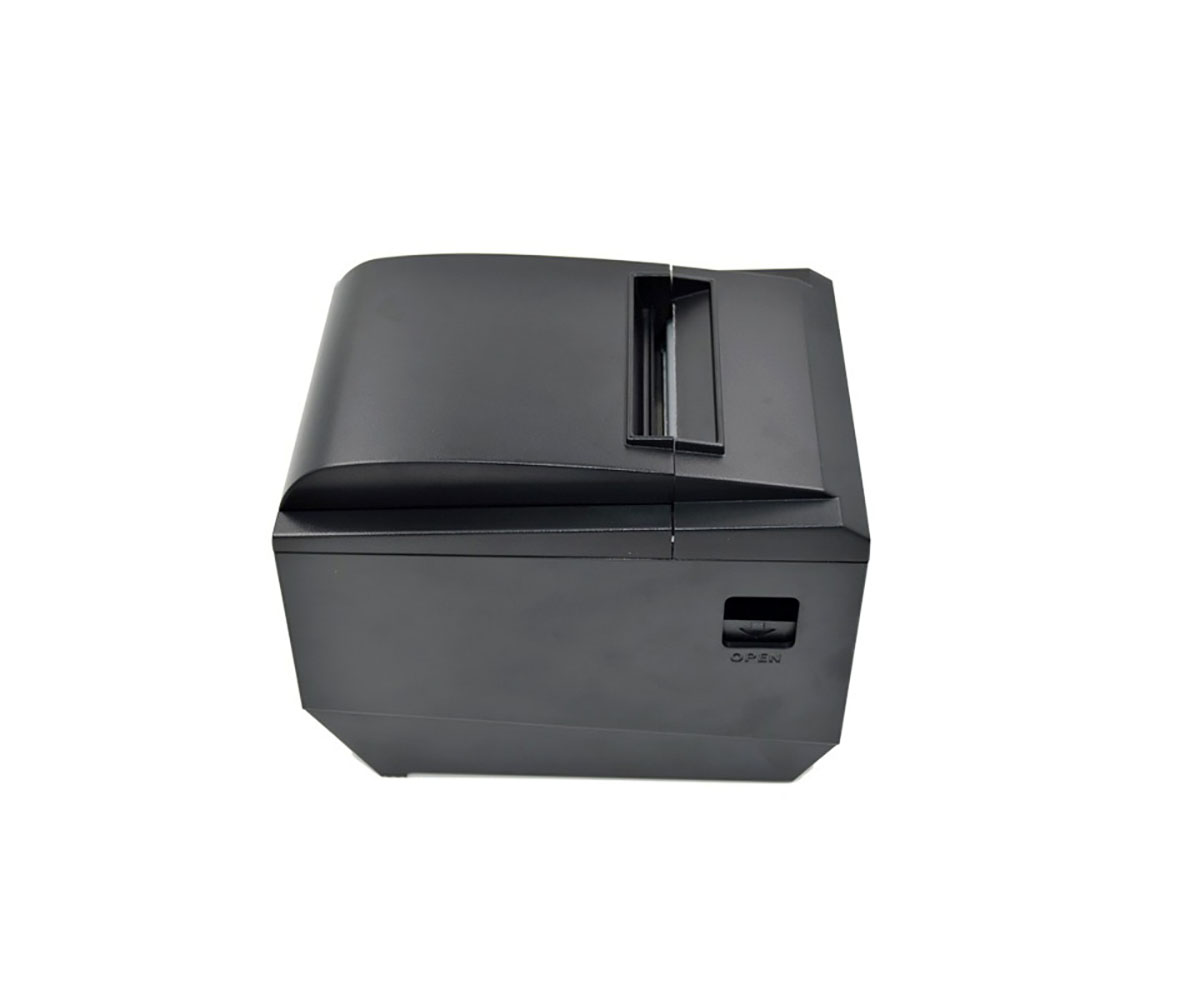

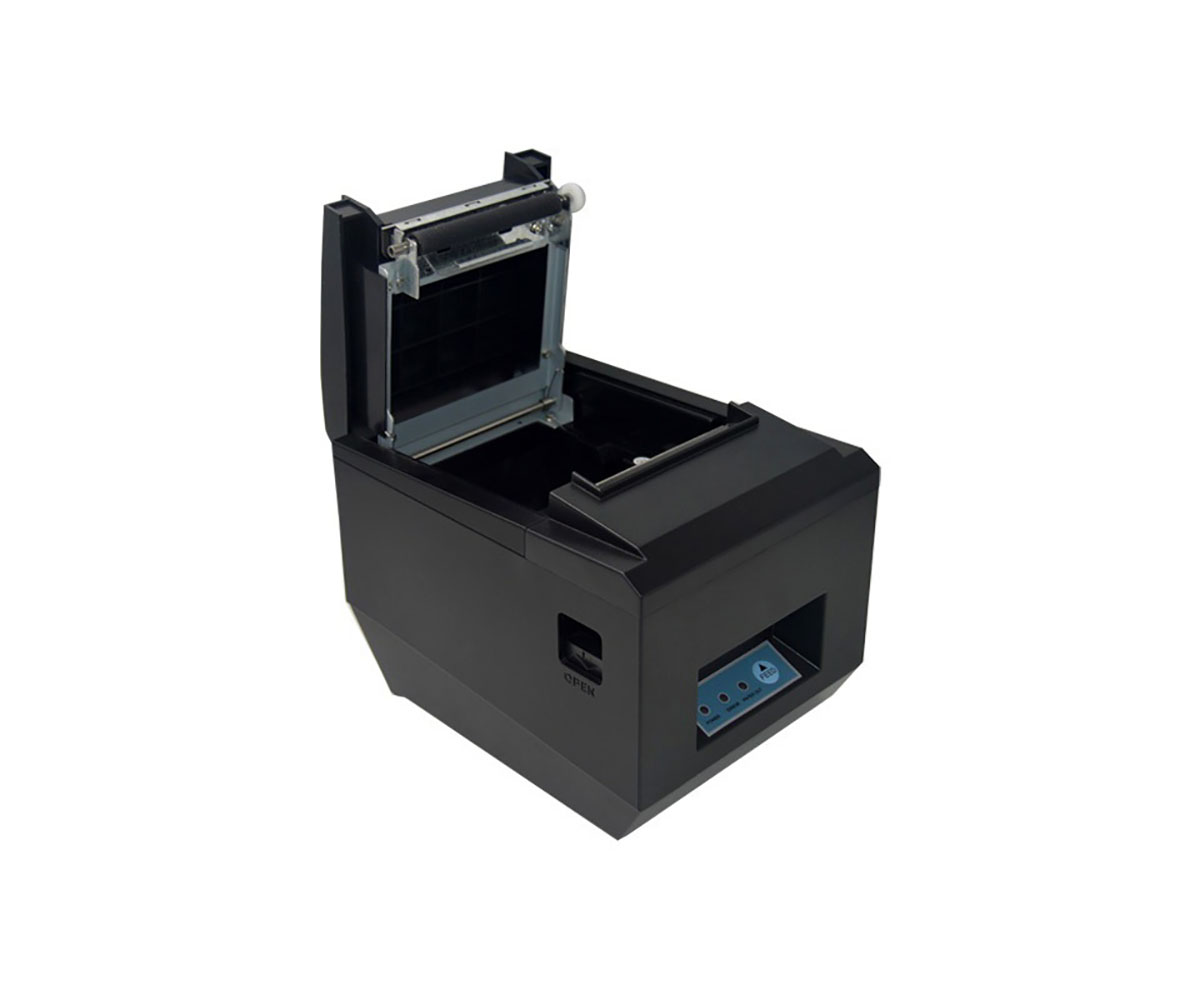

JAW-RH8250
80 Thermal Receipt Printer
Function introduction
- Highly integrated interfaces: USB port, serial port and Network interface integrated in the same motherboard.
- Support acousto-optics prompt function, adopting external acousto-optics alarming, more suitable for the printing of kitchen menu.
Features
- Suitable for all kinds of commercial retail POS system, catering systems, industrial control system, etc.
- Small and portable, beautiful in appearance.
- High quality and low cost in printing.
- Low noise, high printing speed.
- Support the cash drawer drive.
- Reasonable structure, loading paper easily, convenient in operation and maintenance.
- Low consumption, low operation cost.
- Built-in data buffers, the printing data can be received when printing.
- Character size and line space can be adjusted according to actual requirement.
Technical Specifications
| Features | Details |
|---|---|
| Printing | |
| Printing Method | Direct Thermal |
| Printing Speed | 260mm/s |
| Paper Width | 79.5±0.5mm |
| Print Width | 72mm |
| Paper Thickness | 0.06~0.08mm |
| Column Capacity | 576 dots/line, 512 dots/line (80mm) |
| Line Space | Space 3.75mm (changeable using commands) |
| Interfaces | USB/Serial/Lan/Parallel/Bluetooth/Wifi Option |
| Barcode | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODABAR/ITF/CODE39/CODE93/CODE128, QR CODE / PDF417 |
| Code Page | PC347 (Standard Europe), Katakana, PC850 (Multilingual), PC860 (Portuguese), PC863 (Canadian-French), PC865 (Nordic), West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866 (Cyrillic#2), PC852 (Latin2), PC858, IranII, Latvian, Arabic, PT151 (1251) |
| Power | |
| Power Supply | AC 100~240V, DC 24V / 2.5A |
| Physical & Environment | |
| Color | Black/White |
| Dimensions (W x H x D) | 190 x 145 x 145 (MM) |
| Packing Dimensions (W x H x D) | 480 x 451 x 352 (MM) for 8PCS |
| Net Weight | 2.00KG |
| Packing Weight | 19.00KG for 8PCS |
| Temperature | Operating Temp: 5°C ~ +45°C, Storage Temp: -40°C ~ +55°C |
| Humidity | Operating Humidity: 20%~80%, Storage Humidity: <93% (40°C) |
| Reliability | Cutter life: 1.5 million cuts; Printer head life: 150KM |
| Software | |
| Emulation | ESC/POS |
| Driver | Windows/JPOS/Linux/Android/Mac |
| Utility | Windows & Linux test Utility |
| SDK | iOS/Android/Windows |
