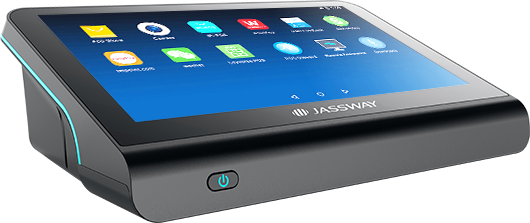

AP116A
11.6inch Android 11 with internal Battery
Features Overview
- Rockchip RK3568 / RK3288 Quad-Core Processor
- Compact 11.6-inch TFT LED Backlight Display

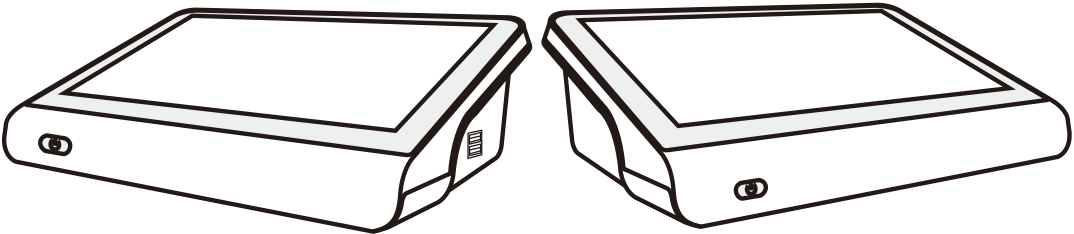

- Internal Battery for Superior Mobility
- Projective Capacitive Touch Screen
- Lightweight and Space-Saving Design
High-performance industrial motherboard.
Ensure stable quality and extend product life.
Brand new 11.6" IPS multi-touch capacitive HD BOE screen.
Bring high-definition and comfortable user experience, suitable for indoor and outdoor environments.
The innovative hardware design invested by Jassway is exquisite, unique and stylish.
Caters to your store's aesthetic taste.
Multiple Externals
beyond your expectation.
Wall Mount Bracket
ADATA 2.5 inch
SATA SSD 128GB
VGA-HDMI adapter
Battery 18650
5000mAH
Unlimited Network Access
Anywhere at any time with Wi-Fi Connection
Bluetooth 4.0
Make unlimited expansion possible.
Optional MSR Module
Optional MSR module is provided for overseas demanders.

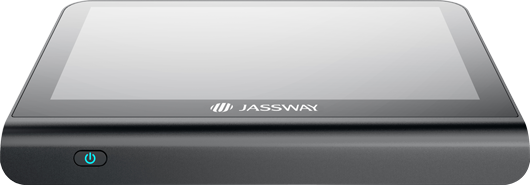

Just Enough Memory
The built-in large memory enables customer to store more promotional photos, videos, advertisements and files, etc.

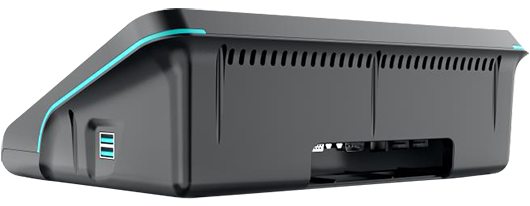

Micro but robust appearance.
The middle lines in bold on both sides create an eye-catching look for customers, forming its smart but robust appearance.
OS
Android 11
CPU
Rockchip RK3568
Memory
2GB / 4GB RAM DDR3
Main Display
11.6" TFT LED Backlight
Touch
Projective Capacitive
Wifi
802.11 a/b/g/n
Storage
16GB / 32GB eMMC
Audio
1*3W Speaker
Technical Specifications
| Features | Details |
|---|---|
| SYSTEM | |
| Model Number | AP116A |
| Processor | Rockchip RK3568 / RK3288 Quad-Core Cortex A17 up to 1.8GHz |
| Memory | 2GB / 4GB Standard, DDR3 |
| Storage | 16GB / 32GB eMMC standard |
| OS | Android 11 |
| DISPLAY | |
| Type | 11.6 Inch TFT LED Backlight |
| Resolution | 1366*768 (1920*1080 Option) |
| Brightness | 220cd/m2 (300cd/m2 Option) |
| Touchscreen | Projective Capacitive Touch Screen |
| INTERFACE | |
| Display Out | 1*HDMI |
| USB | 5*USB2.0 (side 2, rear 3) |
| LAN | 1*RJ45, 1000M Gigabit Ethernet |
| Serial | 2*COM |
| Audio | 1*3.5mm Audio Jack |
| Power DC-IN | Input AC 100~240V/50~60hz, Output DC12V/5A |
| PHYSICAL & ENVIRONMENTAL | |
| Operating Temperature | Operating 0~60°, Storage -35°~75° |
| Dimensions(W×H×D) | 300x95x220 MM |
| Packing Dimensions(W×H×D) | 420x325x170 MM |
| Net Weight | 1.6KG |
| Color | Black/White |
| OPTIONS & PERIPHERALS | |
| Wifi & Bluetooth | 802.11 a/b/g/n / BT 4.0 (Option) |
| Speaker | Built-in 3W speaker |
| 4G module | Support 4G TD-LTE, FDD-LTE (factory option) |
| Battery | 5000mAh(option) |
| Wall Mount | VESA 75*75mm (Option) |
