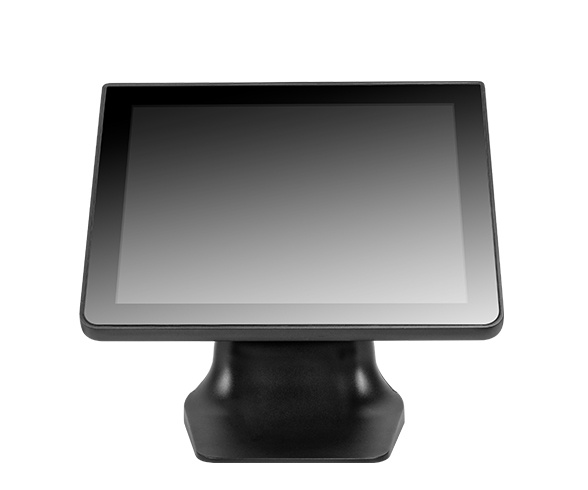

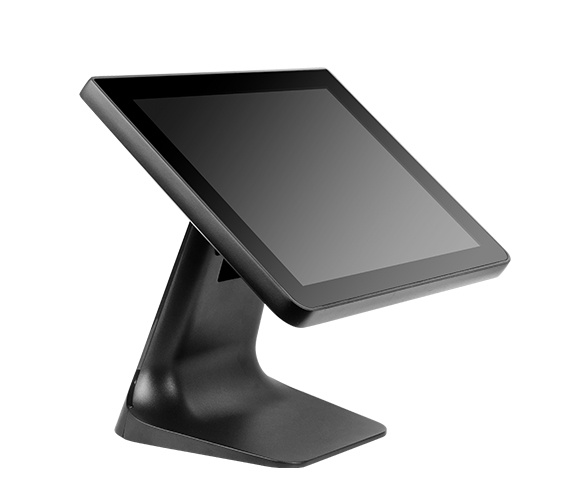

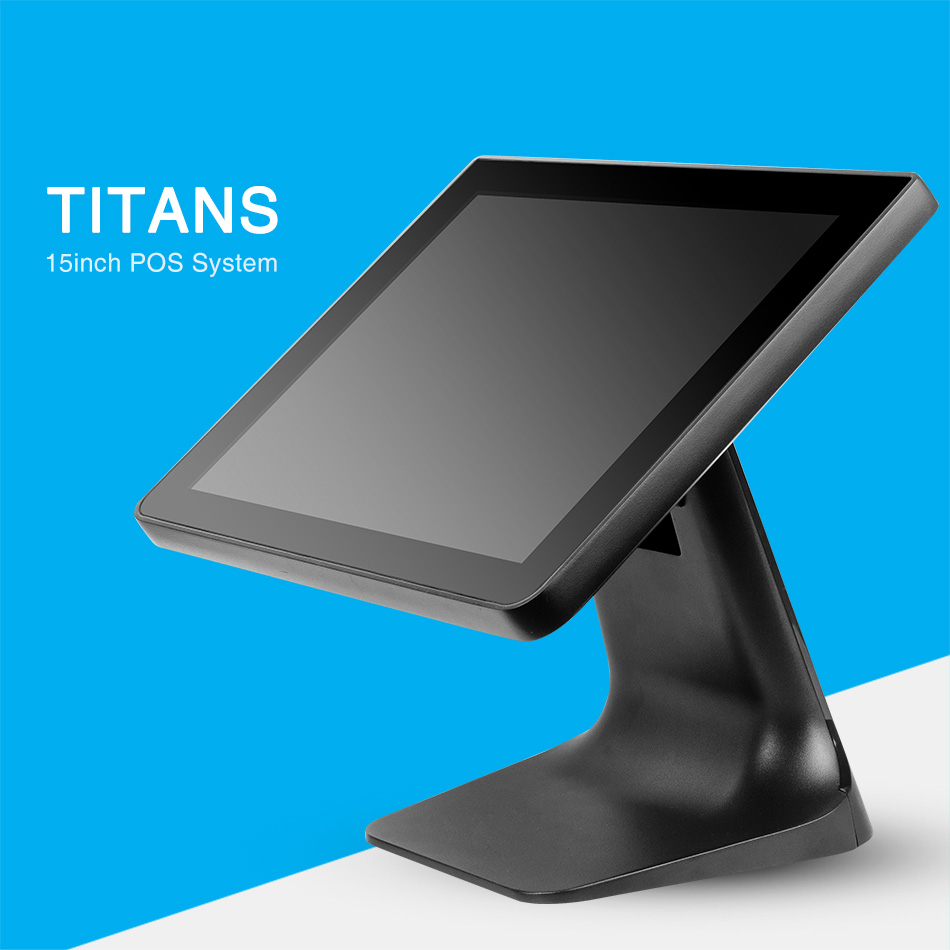

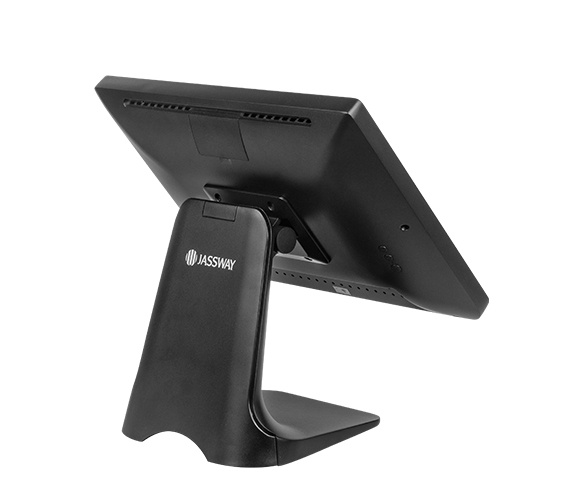

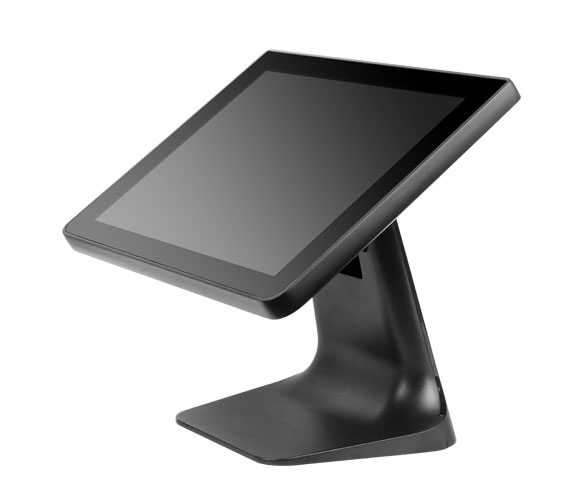

Titans
15inch Windows POS, Alumunium
Features Overview
- Quad Core Processor / Core i3/i5 Support
- 15-inch LED Backlight Display
- Premium Aluminum Build
- Projective Capacitive Touch Screen
- VESA 75*75mm Compatible for Wall Mount
Sleek Aluminum Design
The Titans POS features a stunning, heavy-duty aluminum construction that delivers both durability and a premium aesthetic to your checkout counter. Engineered to withstand harsh retail environments while looking elegant in any store layout.
Powerful CPU Options
Equipped with reliable processors ranging from Intel Celeron J6412 up to high-performance Intel Core i3/i5 processors, ensuring fast and smooth operation even during peak hours. Easily handle multiple operations, CRM programs, and intensive applications simultaneously.
Rich I/O Interfaces
Designed for maximum peripheral integration, featuring an abundance of ports (USB, LAN, Serial, Audio, Display). Whether you need to connect scanners, cash drawers, or secondary displays, Titans provides the robust connectivity necessary for modern checkout experiences.
OS
Windows 10/11
CPU
Intel Celeron J6412
Intel Core i3/i5 Options
Memory
4GB Standard, up to 32GB
Main Display
15" LED Backlight
2nd Display
9.7/12.1/15 Inch (Option)
Wifi
Mini PCIe Wireless (Option)
Bluetooth
Bluetooth 4.0 (Option)
Wall Mount
VESA 75x75mm Compatible
Technical Specifications
| Features | Details |
|---|---|
| SYSTEM | |
| Processor | Intel Celeron J6412 Quad-Core, Up to 2.60 GHz Intel Alder Lake-N N95, N97, N100 Processor Intel Core i3/i5 7/8/10/11/12th High Performance CPU |
| Memory | 4GB Standard, up to 8GB/16GB/32GB |
| Storage | mSata or M.2 128GB standard, up to 512GB |
| OS | Windows 10/11 |
| DISPLAY | |
| Type | 15 LED Backlight Display |
| Resolution | 1024*768 |
| Aspect Ratio | 4:3 |
| Brightness | 300 nits (350 nits Option) |
| Touchscreen | Projective Capacitive Touch Screen |
| INTERFACE | |
| USB | 6*USB |
| Serial | 1*COM(RS232) |
| LAN | 1*RJ45 |
| Audio | 1*Line Out, 1*Mic In |
| Display | 1*VGA or 1*VGA & 1*HDMI |
| Power DC-IN | Input AC 100~240V/50~60hz, Output DC 12V/5A |
| PHYSICAL & ENVIRONMENTAL | |
| Operating Temperature | Operating 0~50° |
| Storage Temperature | Storage -20°~60° |
| Cooling | Fanless/With CPU Fan |
| Dimensions(W×H×D) | 360x380x210(MM) |
| Packing Dimensions(W×H×D) | 410x435x260(MM) |
| Net Weight | 5.50KG(Single Display) |
| Packing Weight | 7.50KG |
| Color | Black |
| Certification | CE, FCC, RoHS |
| OPTIONS & PERIPHERALS | |
| 2nd Display | 9.7/12.1/15 Inch 2nd Display (Touch on 2nd Display Option) |
| VFD | VFD, 20 Columns x 2 Lines(Option) |
| MSR | ISO 3 Tracks Reading(Option) |
| Wifi | Mini PCle for Wireless LAN (Option) |
| Bluetooth | Bluetooth 4.0 protocol(Option) |
| Speaker | 1*3W Speaker(Option) |
| Wall Mount | VESA 75*75mm (Available for Single Display Only) |
