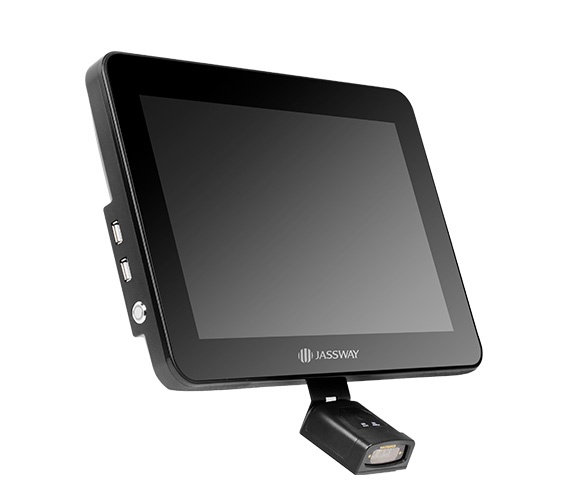

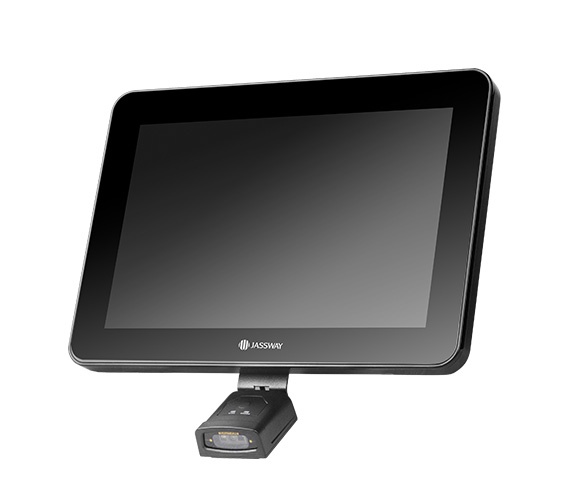

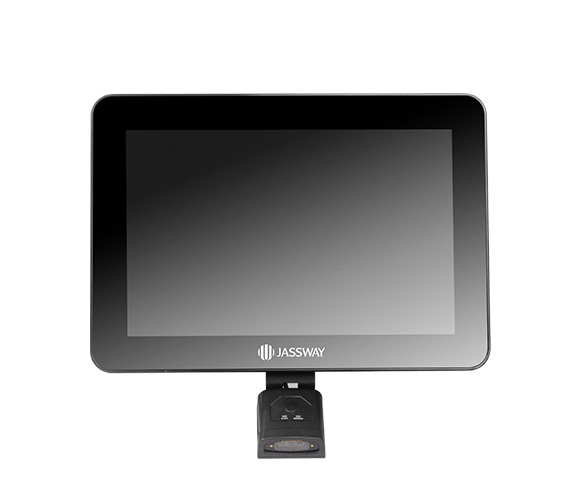

JAW-K120
Windows price checker with 12/15 inch screen
Function introduction
- Price Checker with Windows System
- Save time and manpower, convenient and quick
- Suitable for many different scenarios
- Can be used with other equipments
- Fast scanning speed and accurate information reading
Features
• Windows based price checker with 12.1 inch touch screen display.
• Save time and manpower, convenient and quick, ideal for supermarket self-service.
• Fast scanning speed and accurate information reading.
• Can be used with other equipments, suitable for many different scenarios.

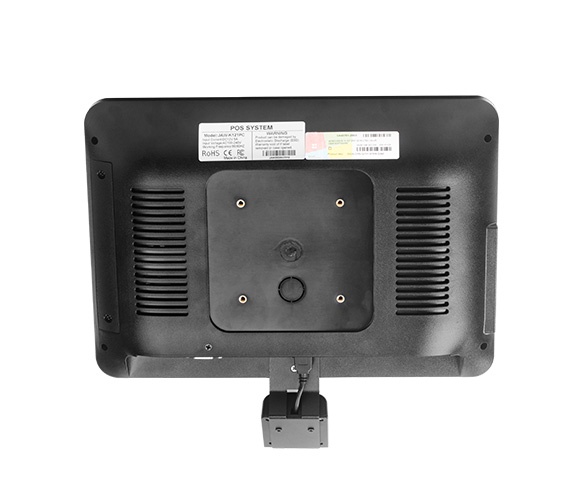

• Compact design with wall mount VESA 75*75mm bracket option.
OS
Windows 7/10/11, POSReady7
CPU
Intel Celeron J1800/J1900
Memory
2GB DDR3, up to 8GB
Main Display
12.1'' TFT LCD
Scanner
1D, 2D
Wifi
Mini PCIe for Wireless LAN (Factory Option)

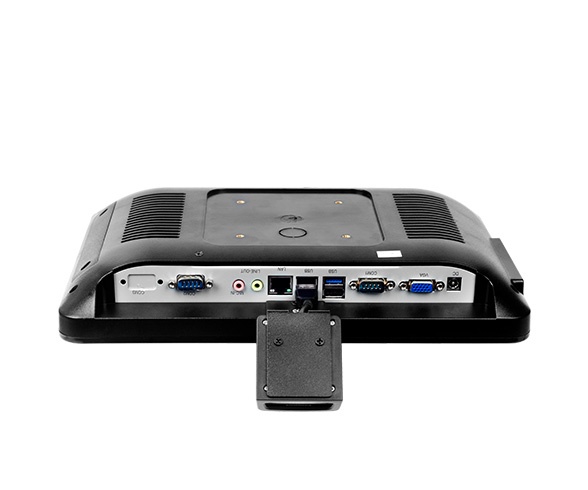

Interface
1*VGA, 3*USB2.0, 1*COM (RS232), 1*Gigabit Ethernet
Speaker
2*3W speakers
Technical Specifications
| Features | Details |
|---|---|
| SYSTEM | |
| Processor | Intel® Celeron® J1800 Dual Core Processor Intel® Celeron® J1900 Quad Core Processor |
| Memory | 2GB Standard, DDR3, (up to 8GB), Optional |
| Storage | Msata SSD 32GB Standard, 64GB, 128GB, 256GB, Optional |
| OS | Windows 7, Windows 8.1, Windows 10, POS Ready7 |
| DISPLAY | |
| Type | 12.1'' TFT LCD |
| Resolution | 1280*800 |
| Brightness | 250 nits |
| Viewing Angle(CR≥10) | 140 Degree(H) , 130 Degree(V) |
| Touchscreen | Projective Capacitive Touch Screen |
| INTERFACE | |
| Display | 1*VGA |
| USB | 3*USB2.0 |
| LAN | 1*Gigabit Ehernet, RJ45 |
| Serial | 1*COM(RS232) |
| Power DC-IN | Input AC 100~240V/50~60hz, Output DC12V/5A |
| SCANNER | |
| Supported Symbologies | 1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISSN/ISBN, Interleaved 2 of 5, ITF-6, ITF-4, Codebar, Matrix 2 of 5, Industrial 25, Standard 25, MSI-Plessey, Code 39, Code 93, Code 11, Plessey, GS1-DataBar™ (RSS) (RSS-14, RSS-Limited, RSS-Expand) 2D: PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, 050, ECC000, 080, 100, 140), Hanxin |
| PHYSICAL & ENVIRONMENTAL | |
| Operating Temperature | Operating 0~60° |
| Storage Temperature | Storage -35°~75° |
| Dimensions(W×H×D) | 300x200x700(MM) |
| Packing Dimensions(W×H×D) | 430x410x150(MM) |
| Net Weight | 2.5KG |
| Packing Weight | 3.0KG |
| Color | Black |
| BUILT-IN FUNCTIONS | |
| Wifi | Mini PCIe for Wireless LAN (Factory Option) |
| Speaker | 2*3W speakers |
| Wall Mount | VESA 75*75mm bracket |
