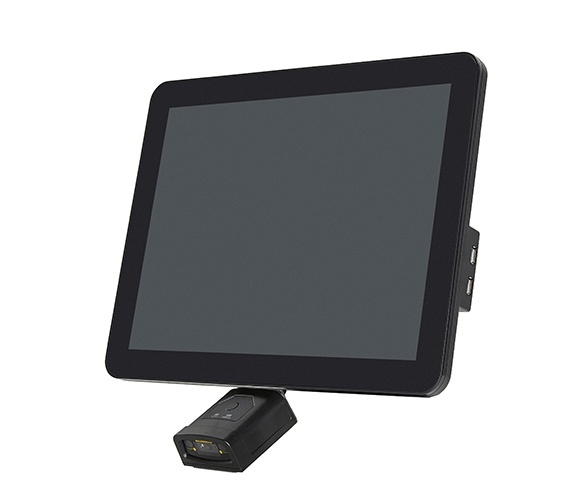

JAW-K150
15 inch price checker
Function introduction
- Price Checker with Windows System
- Save time and manpower, convenient and quick
- Suitable for many different scenarios
- Can be used with other equipments
- Fast scanning speed and accurate information reading
Features
Price Checker with Windows System
Improve customer service and the customer experience with the latest innovation in self-service technology, the JAW-K150 micro kiosk. This compact, easy-to-install and affordable device allows retailers to put the power of self-service in every aisle or department. So, no matter where in the store your customers might be, help is never more than a few steps away. Customers can check price and inventory, check the balance on a gift card, look up a loyalty point balance, determine the location of a product and call for assistance — all with the scan of a barcode.
Easy to install anywhere and everywhere
The JASSWAY JAW-K150 improves customer service and the customer experience with the latest innovations in self-service technology. This compact, easy-to-install and affordable device allows retailers to put the power of self-service in every aisle or department. So, no matter where in the store your customers might be, help is never more than a few steps away. Customers can check price and inventory, check the balance on a gift card, look up a loyalty point balance, determine the location of a product and call for assistance, all with the scan of a barcode or press of a button or touchpad. In addition, the JAW-K150 easily connects to third-party small mobile printers, enabling retailers to build on the solution to enable more sophisticated and valuable services. For example, customers can print out recipes, gift registries and coupons for in-store specials as well as personalized coupons based on a scan of the customer's loyalty card.
OS
Windows 7/10/11, POSReady7
CPU
Intel Celeron J1800/J1900
Memory
2GB DDR3, up to 8GB
Main Display
15 inch TFT LCD
Scanner
1D, 2D
Wifi
Mini PCIe for Wireless LAN (Factory Option)
Interface
1*VGA, 3*USB2.0, 1*COM (RS232), 1*Gigabit Ethernet
Speaker
2*3W speakers
Technical Specifications
| Features | Details |
|---|---|
| SYSTEM | |
| Processor | Intel® Celeron® J1800 Dual Core Processor Intel® Celeron® J1900 Quad Core Processor |
| Memory | 2GB Standard, DDR3, (up to 8GB), Optional |
| Storage | Msata SSD 32GB Standard, 64GB, 128GB, 256GB, Optional |
| OS | Windows 7, Windows 8.1, Windows 10, POS Ready7 |
| DISPLAY | |
| Type | 15 inch TFT LCD |
| Resolution | 1280*800 |
| Brightness | 250 nits |
| Viewing Angle(CR≥10) | 140 Degree(H) , 130 Degree(V) |
| Touchscreen | Projective Capacitive Touch Screen |
| INTERFACE | |
| Display | 1*VGA |
| USB | 3*USB2.0 |
| LAN | 1*Gigabit Ehernet, RJ45 |
| Serial | 1*COM(RS232) |
| Power DC-IN | Input AC 100~240V/50~60hz, Output DC12V/5A |
| SCANNER | |
| Supported Symbologies | 1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISSN/ISBN, Interleaved 2 of 5, ITF-6, ITF-4, Codebar, Matrix 2 of 5, Industrial 25, Standard 25, MSI-Plessey, Code 39, Code 93, Code 11, Plessey, GS1-DataBar™ (RSS) (RSS-14, RSS-Limited, RSS-Expand) 2D: PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, 050, ECC000, 080, 100, 140), Hanxin |
| PHYSICAL & ENVIRONMENTAL | |
| Operating Temperature | Operating 0~60° |
| Storage Temperature | Storage -35°~75° |
| Dimensions(W×H×D) | 300x200x700(MM) |
| Packing Dimensions(W×H×D) | 430x410x150(MM) |
| Net Weight | 2.5KG |
| Packing Weight | 3.0KG |
| Color | Black |
| BUILT-IN FUNCTIONS | |
| Wifi | Mini PCIe for Wireless LAN (Factory Option) |
| Speaker | 2*3W speakers |
| Wall Mount | VESA 75*75mm bracket |
