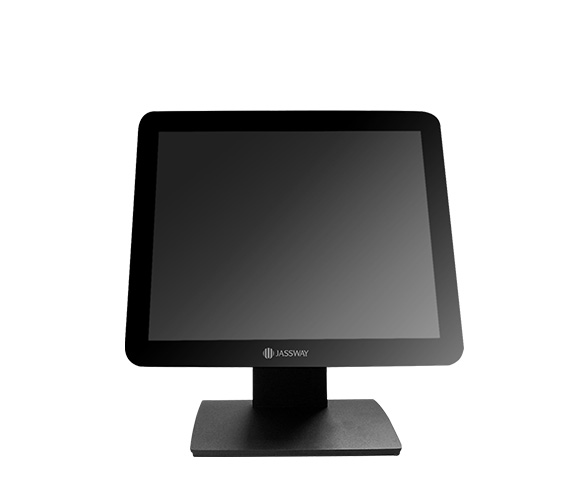

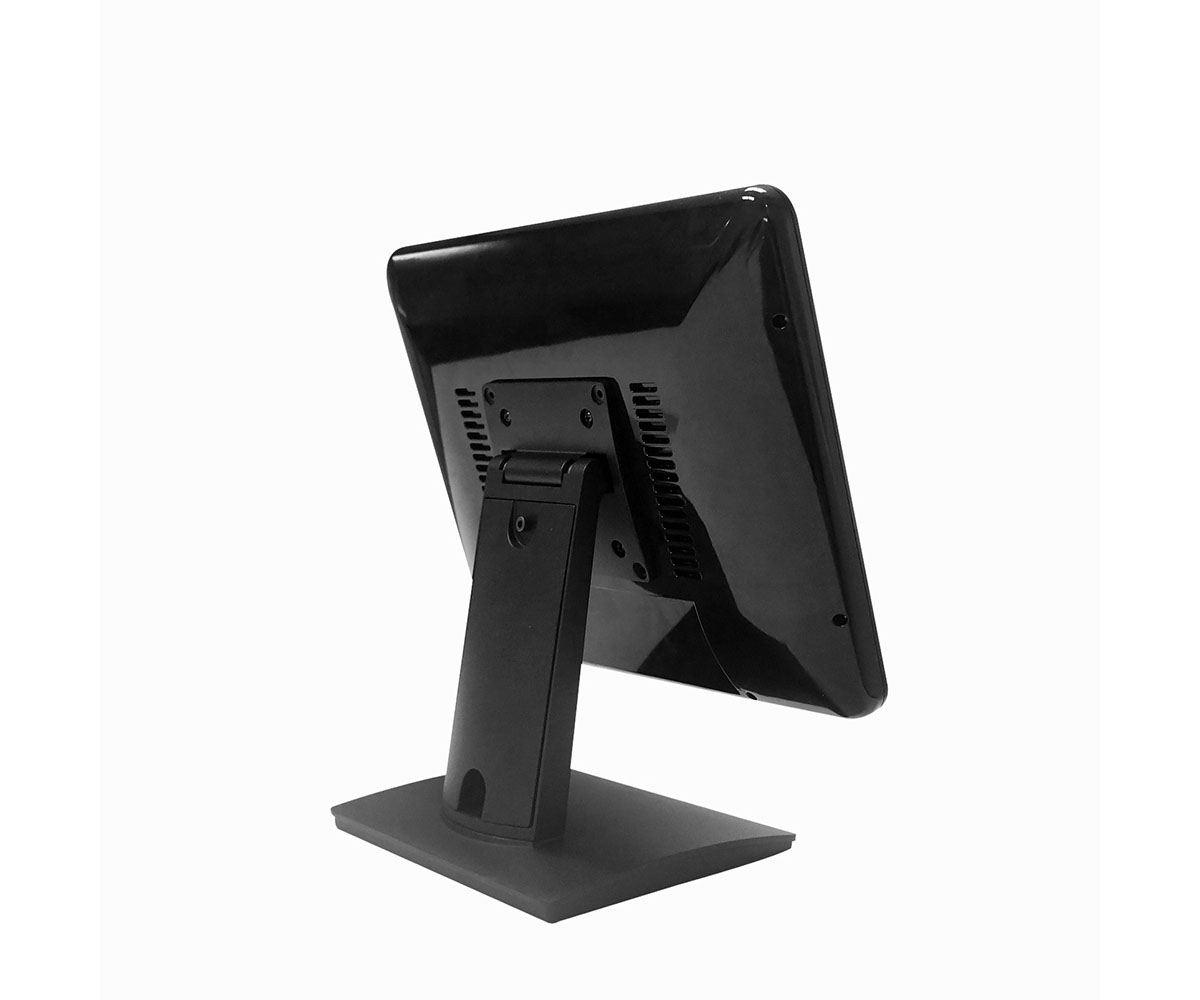

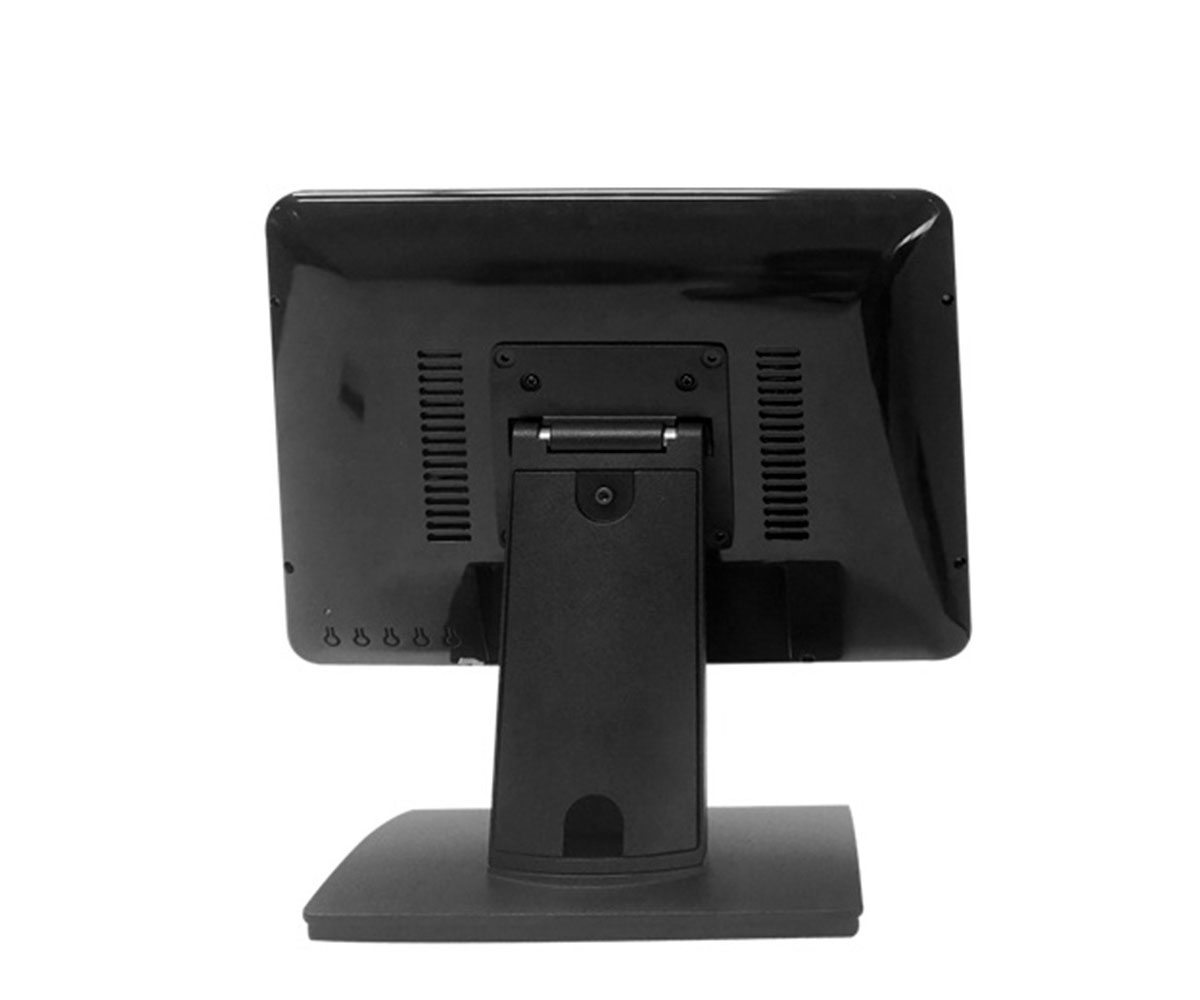

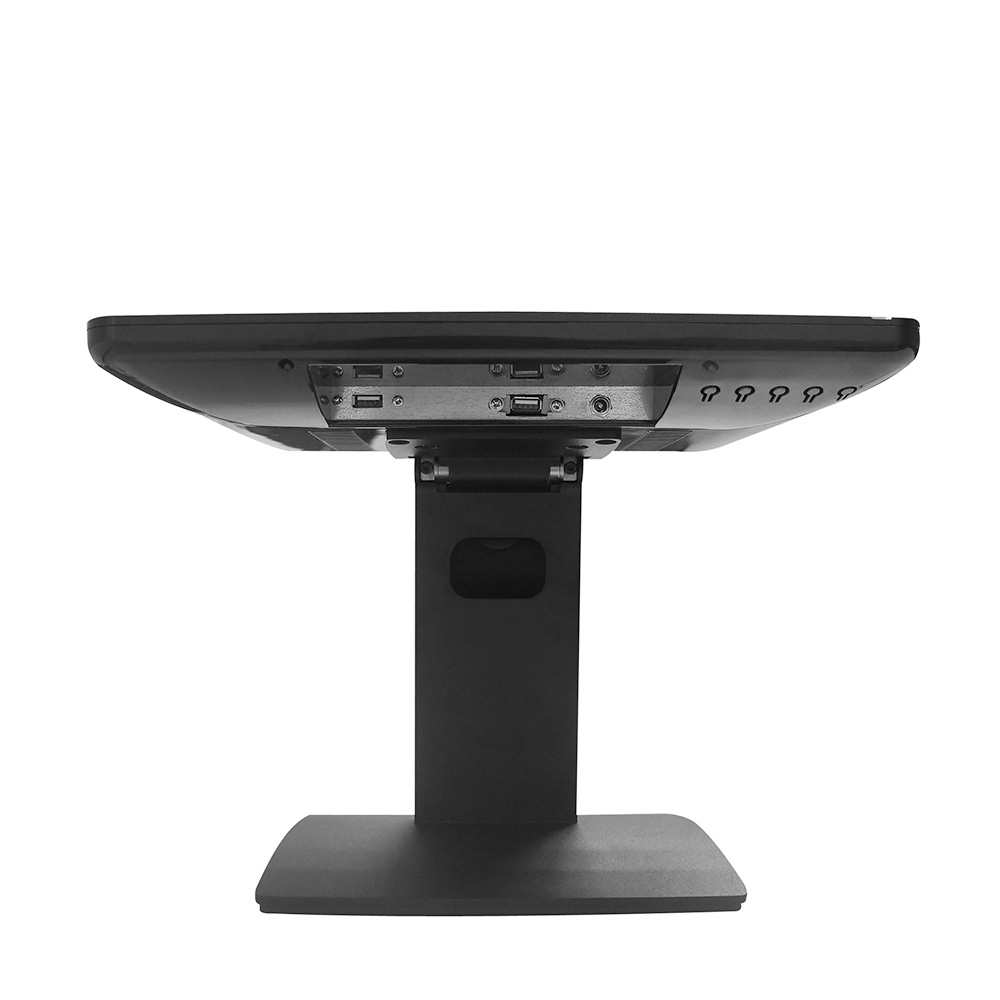

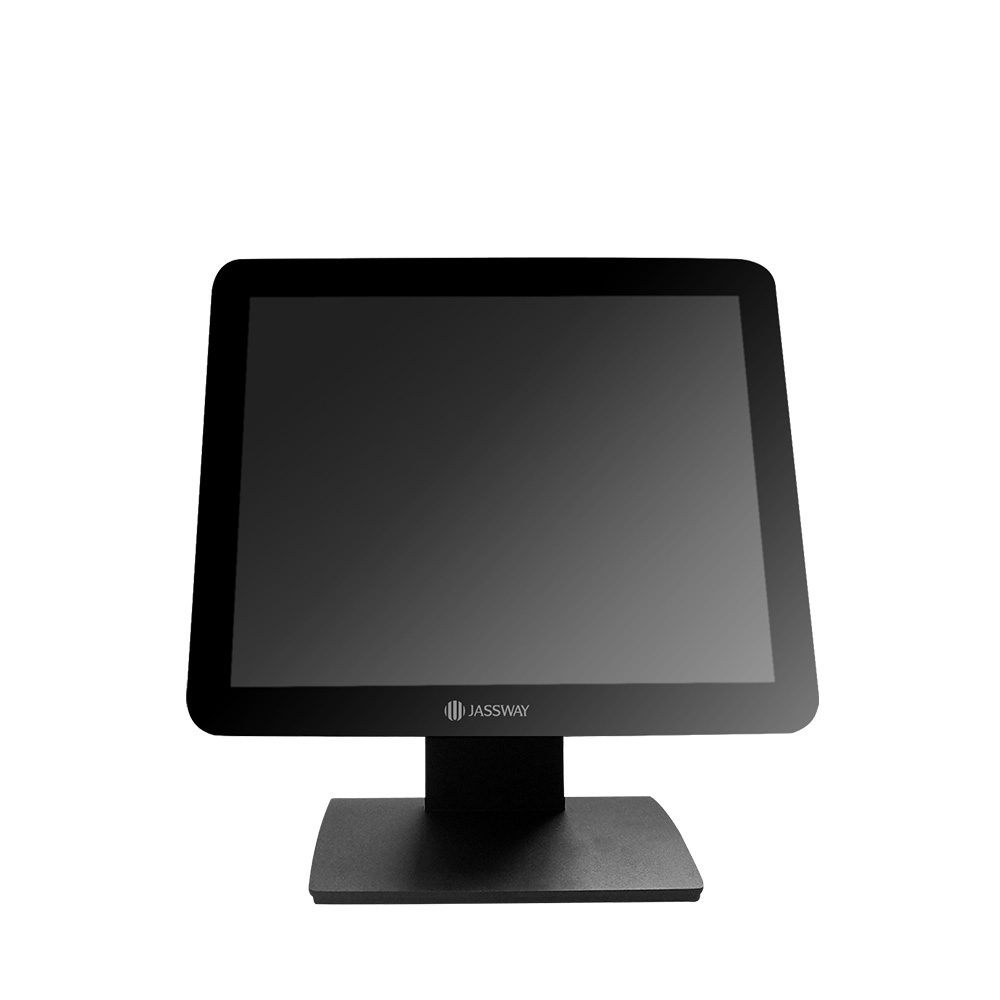

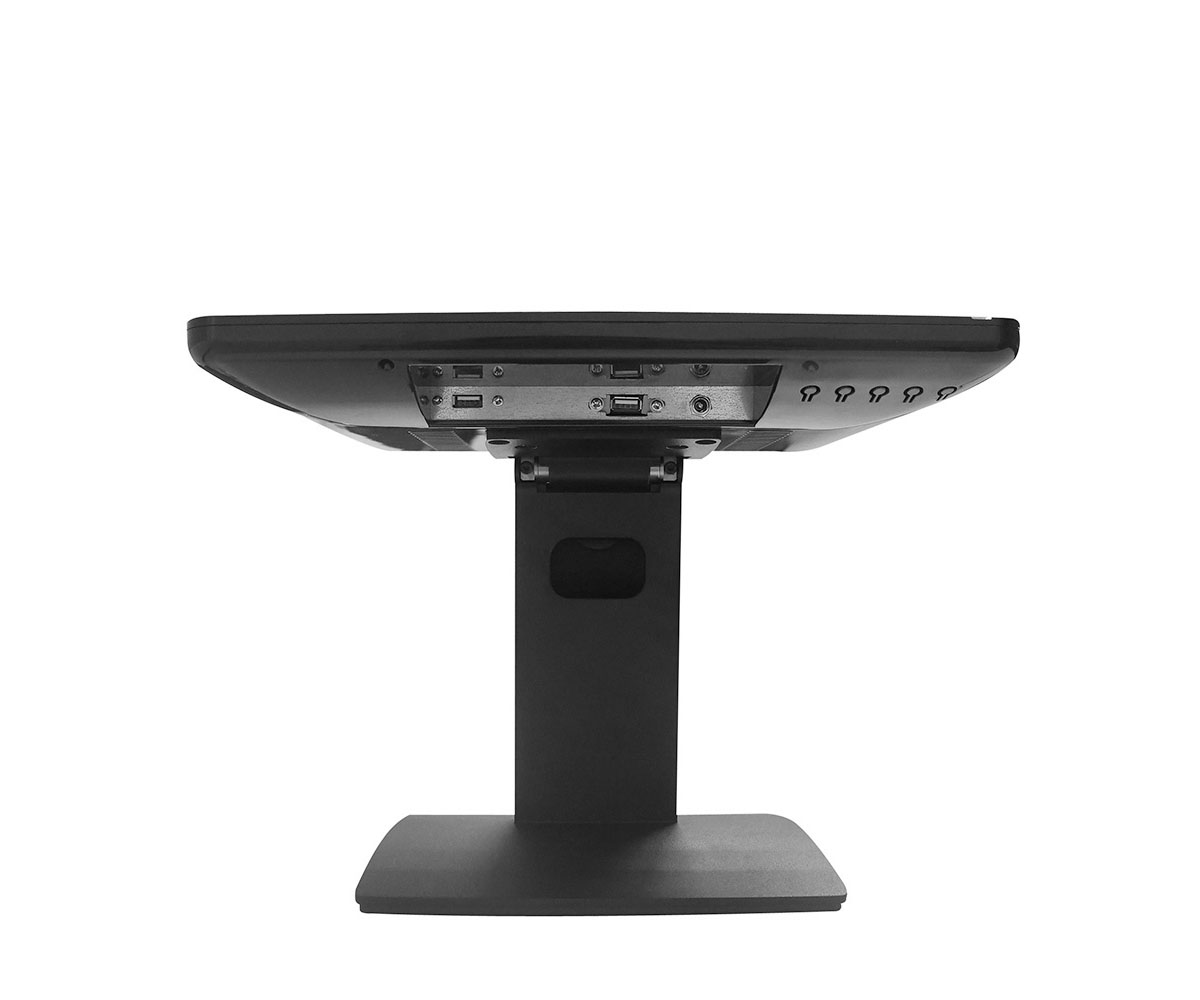

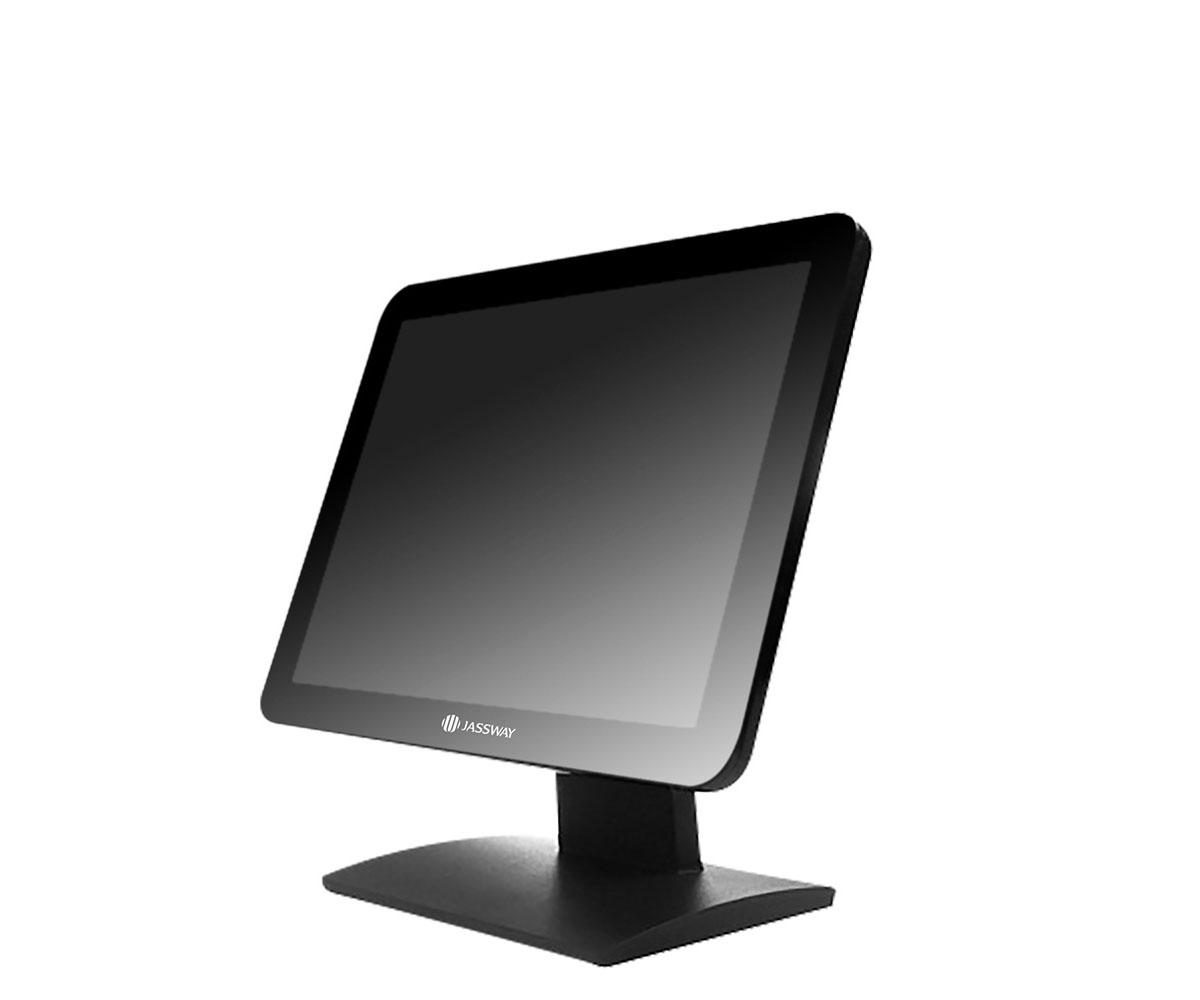

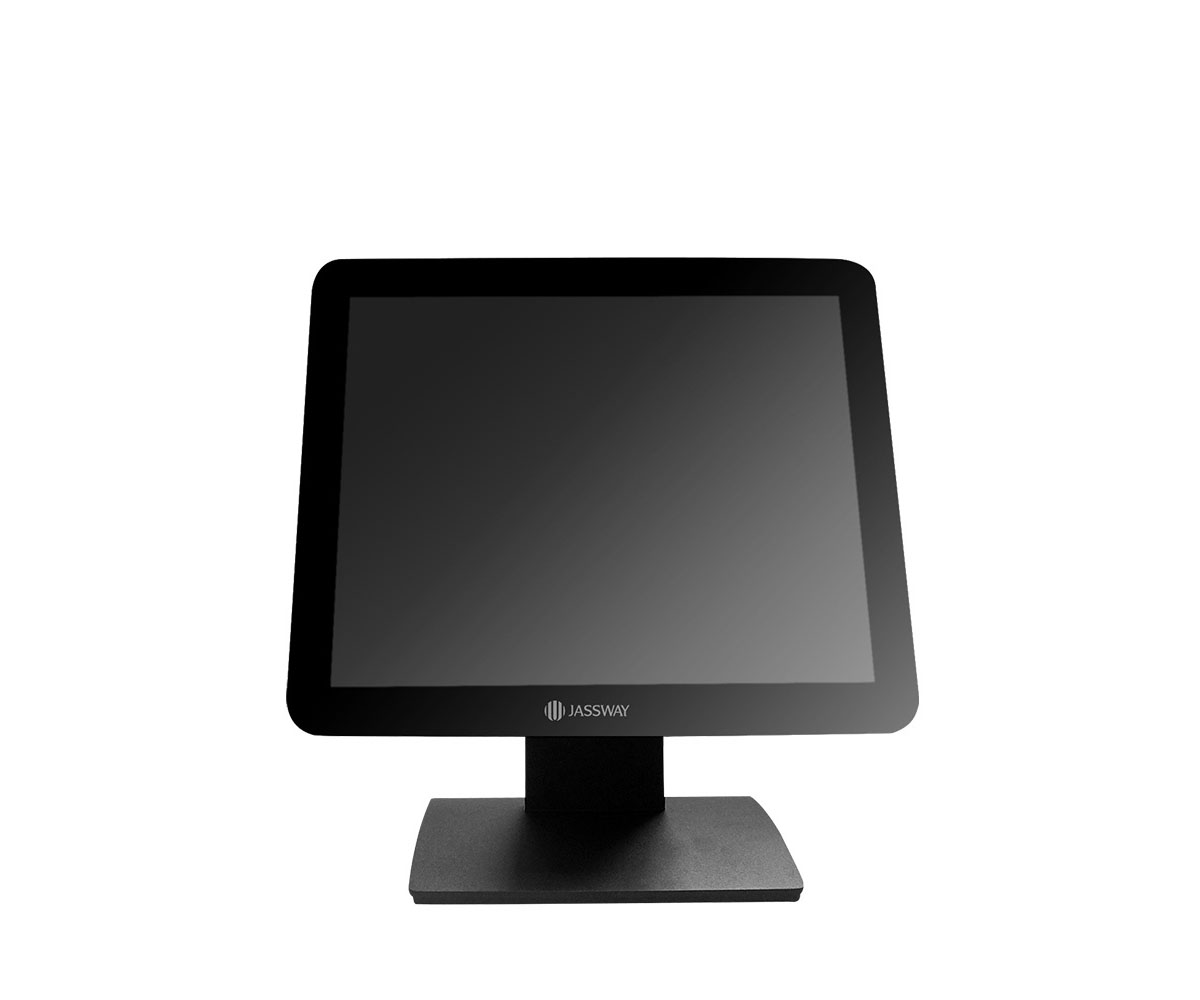

JAW-TM117
17 inch touch monitor
Function introduction
- Panel Size: 17" TFT LCD
- Display Ratio: 4:3
- Resolution: 1024x768
- Pixel Pitch: 0.264H*0.264V
- Brightness: 300cd/m2
Features
JAW-TM117
17 inch touch monitor with plastic capsule design, standard VESA holes installation and touch screen USB or VGA interface for superior flexibility.
Technical Specifications
| Features | Details |
|---|---|
| Specification | |
| Model | JAW-TM117 |
| Material | Plastic capsule |
| Installation | Stand/Standard VESA Holes |
| Touch screen Interface | USB or VGA |
| OSD | power, menu, auto, up, down |
| Power Supply | 110-250 V AC / 12V DC, 50-60 Hz |
| Power Consumption | 16W |
| Line Frequency | 30~80KHZ |
| Field Frequency | 56~75HZ |
| Operating Condition | Temperature: -10-60 degrees Celsius; Humidity: 20-80% |
| Storage Condition | Temperature: -20 to +70 degrees Celsius; Humidity: 10%-90% |
| Touch Validity | >3,000,000 |
| Operating System | Windows, Linux |
